$26,990.00
*Excluding GST & Price’s starting from.
(All prices in AUD)
FINANCE AVAILABLE*
Fully Serviced Professionally Cleaned Trade-in Deals Warranty Available Delivery Australia Wide
Chris Paterson – PH – 0418755697
Danny Foott – PH – 0487962042
Freecall – 1800 704 574
Email – chris@golfmowersaustralia.com.au
Email – sales@golfmowersaustralia.com.au
We have machines in stock with varying hours and accessories, please call for details!

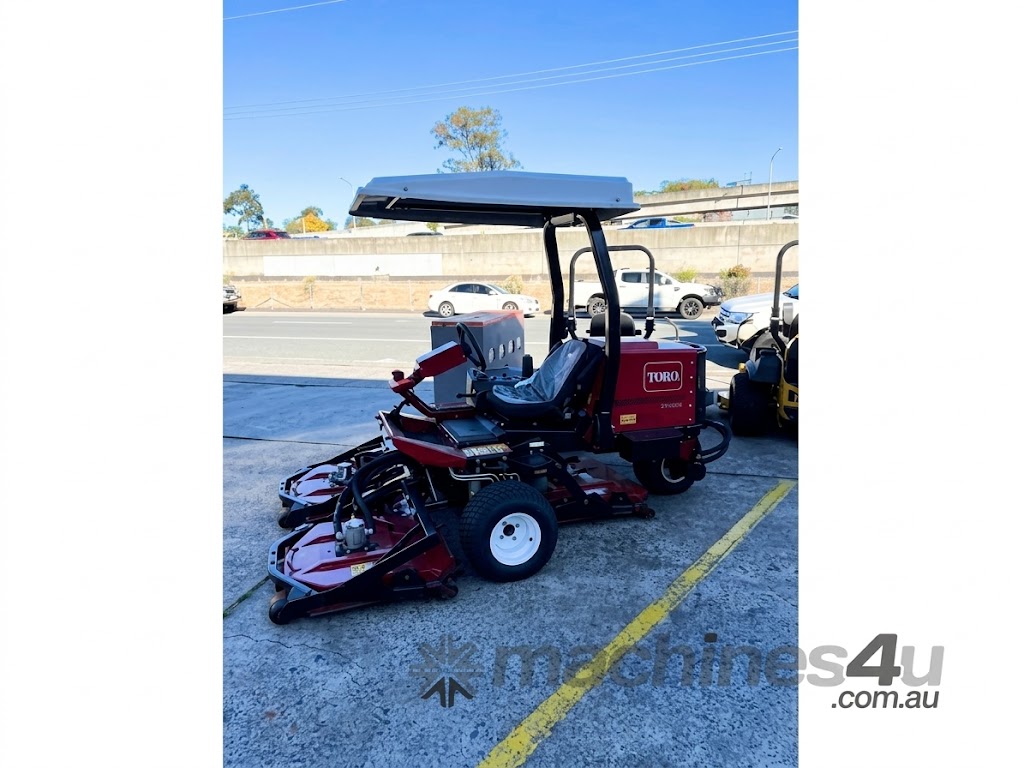

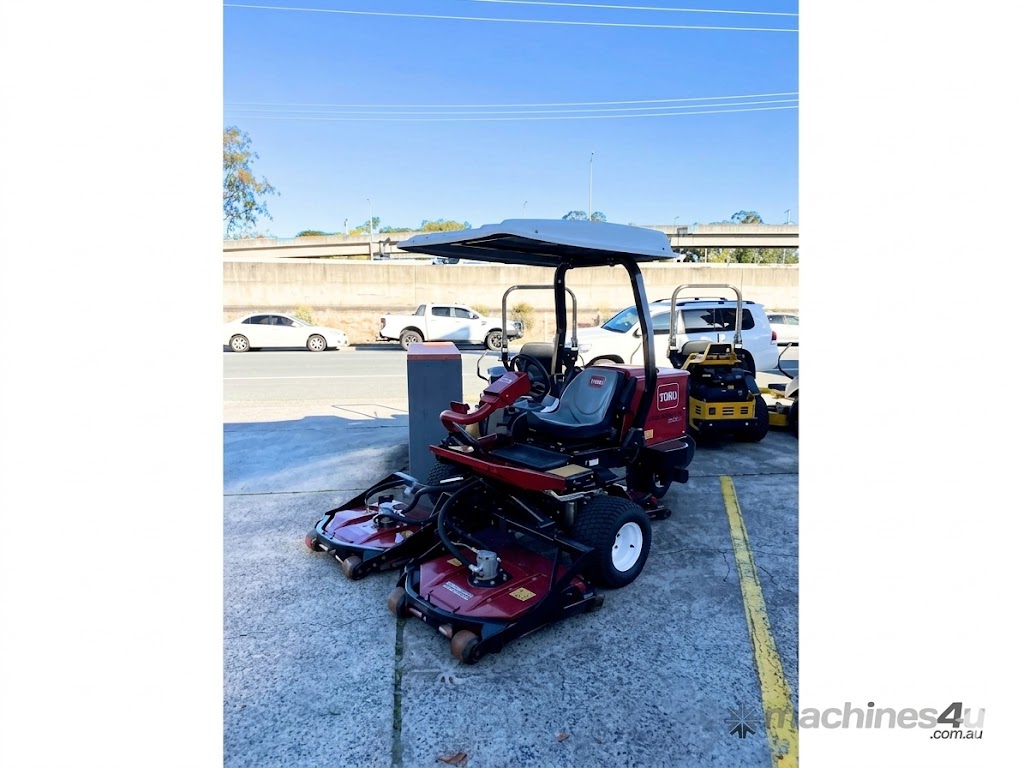

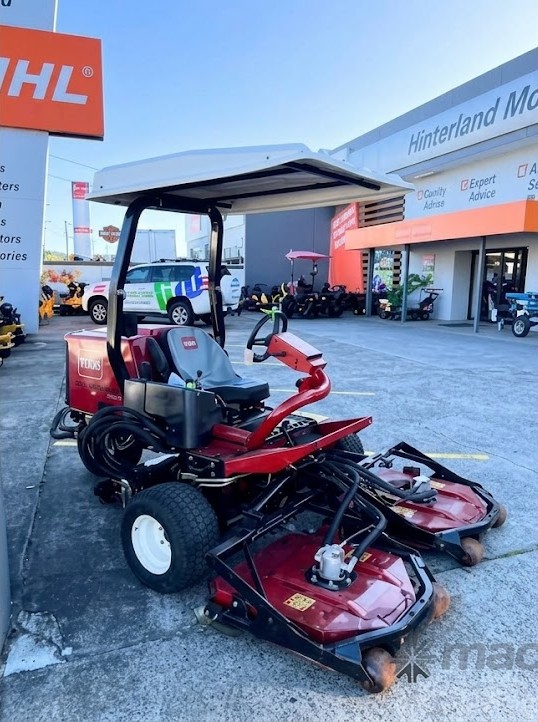

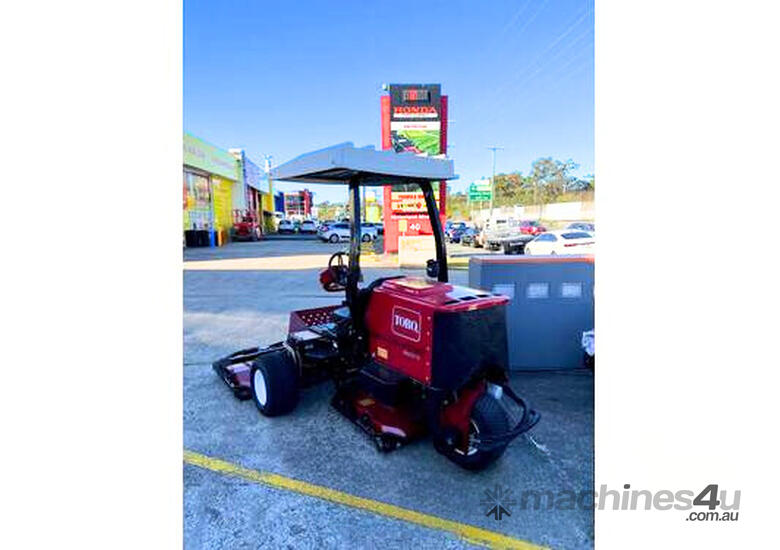

The Groundsmaster® 3500-D is a revolutionary triplex rotary mower designed for superior performance trimming. The free-floating Contour™ Plus cutting decks allow mowing of undulating terrain without scalping. The powerful 18.5 kw Kubota® engine and exclusive Series/Parallel™ traction drive system, gets the mowing job done quickly.

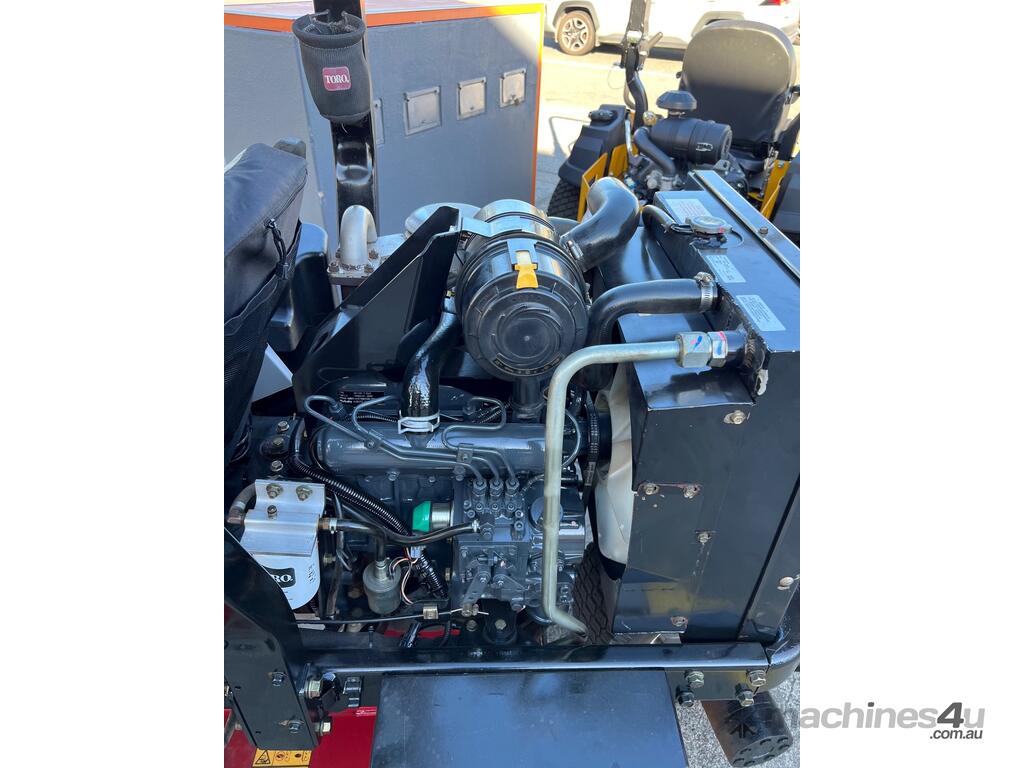

| Engine | Kubota® 3-cylinder, liquid-cooled diesel |
| Engine Power (kW) | 25 hp (18.5 kW) |
| Fuel Type | Diesel |
| Fuel Capacity | 41.6 litres |
| Cooling System | Rear-mounted, cross flow 4-row radiator |
| Air Filter | Remote-mounted 5″ Donaldson® air cleaner |
| Cutting Width | 173 cm (68″) standard and 183 cm (72″) optional. |
| Mowing Rate | 1.7 hectares/hr |

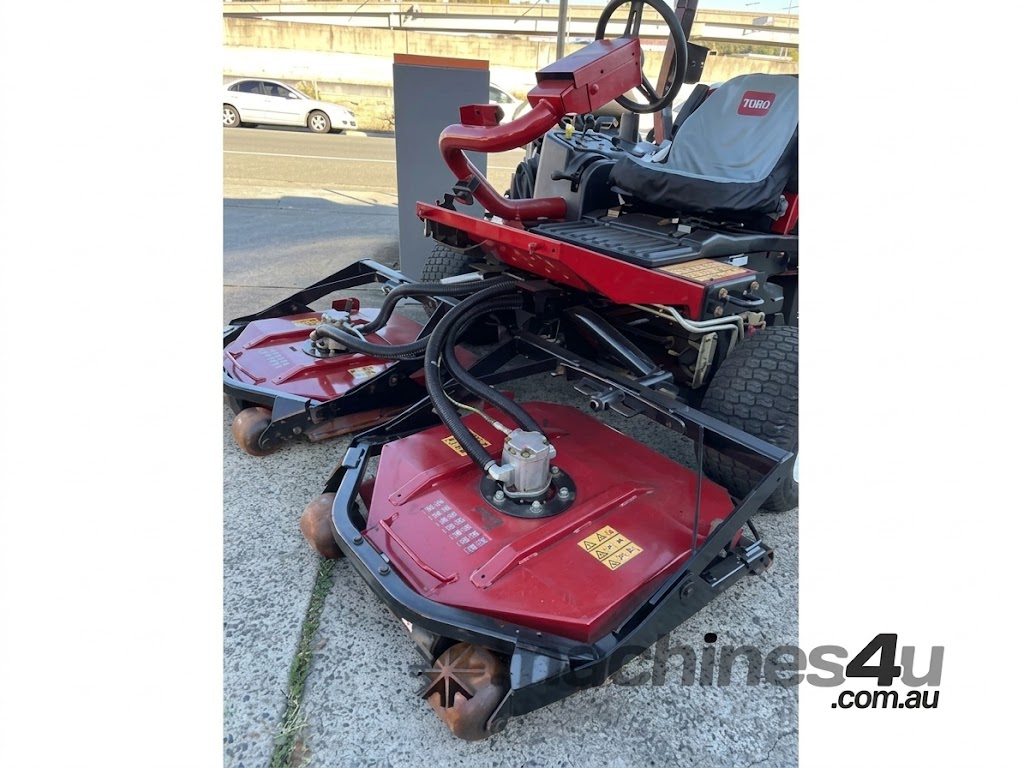

| Deck Design | 10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5″ (3.8 cm) square x 0.25″ (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16″ (0.48 cm) high-strength steel and 10-gauge exterior channels |
| Blades | Combination Blades: 27″ (68.6 cm) long, 2.5″ (6.4 cm) wide, 0.25″ (0.64 cm) thick |
| Spindle Housing | Ductile cast iron spindle housing |
| Spindle Bearings | Dual greaseable tapered roller bearings. 3.2 cm diameter solid cold finished steel spindle shaft |
| Height of Cut | 0.75″ – 4″ (1.9 cm – 10.2 cm) in 0.25″ (0.6 cm) increments. 3-position 0.030″ (0.08 cm) incremental calibration |
| Armrests | Standard |
| Ground Speed – Forward | 0-14 km/h |
| Mowing Speed | 0-10 km/h |
| Traction Drive (System) | 3-wheel drive hydrostatic series/parallel closed-loop transmission |
| Controls | Forward and reverse traction control pedals; mow/transport foot lever; hand activated parking brake; hand operated ignition key switch; tilt steering wheel lock; PTO switch; throttle; joystick control for deck raise and lower; cutting deck transport lock |
| Steering Controls | Hydraulic power steering, tilt wheel |
| Tyres | 20″ X 10″-10″, 4-ply rating, Toro Turf Tread Rear tyres. 20″ X 12″-10″, 4-ply rating, Toro Turf Tread Front tyres |
| Seat | Two-piece premium commercial two-tone grey vinyl with two armrests, fore/aft adjustment |
| Ground Clearance | 15.3 cm |
| Assembled Width Metric | 184 cm |
| Assembled Height Metric | 193 cm |
| Weight | 957 kg |
