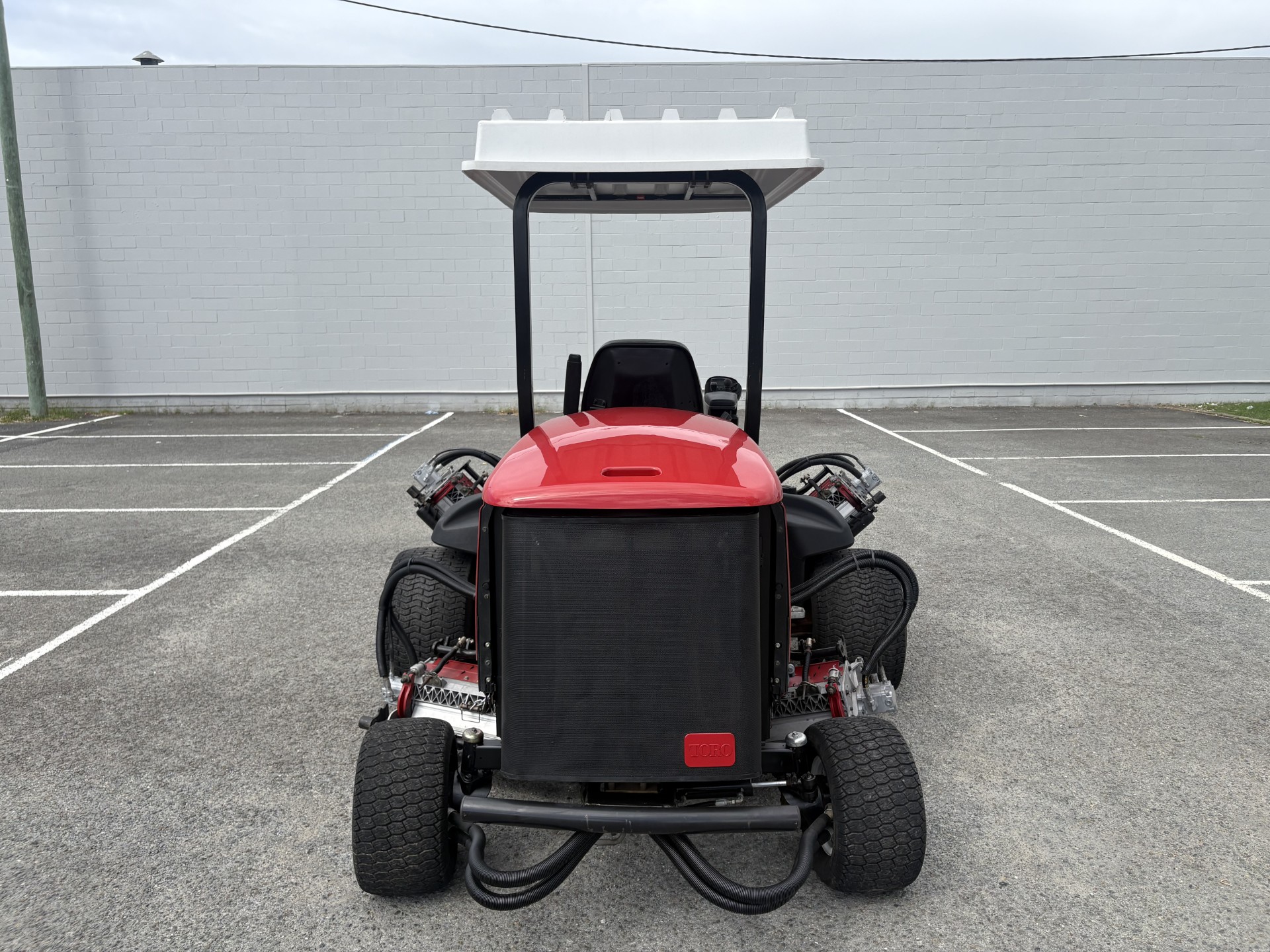

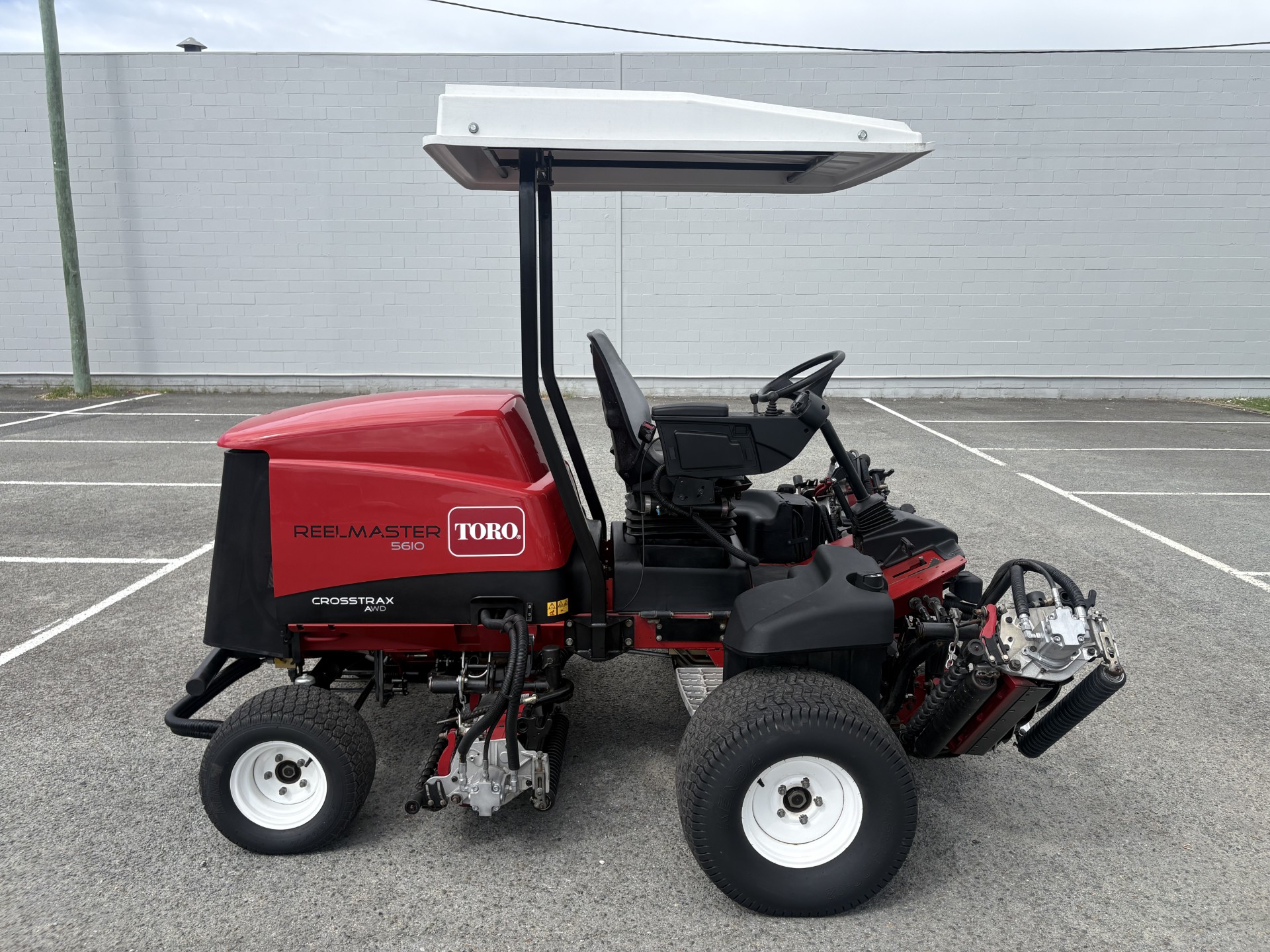

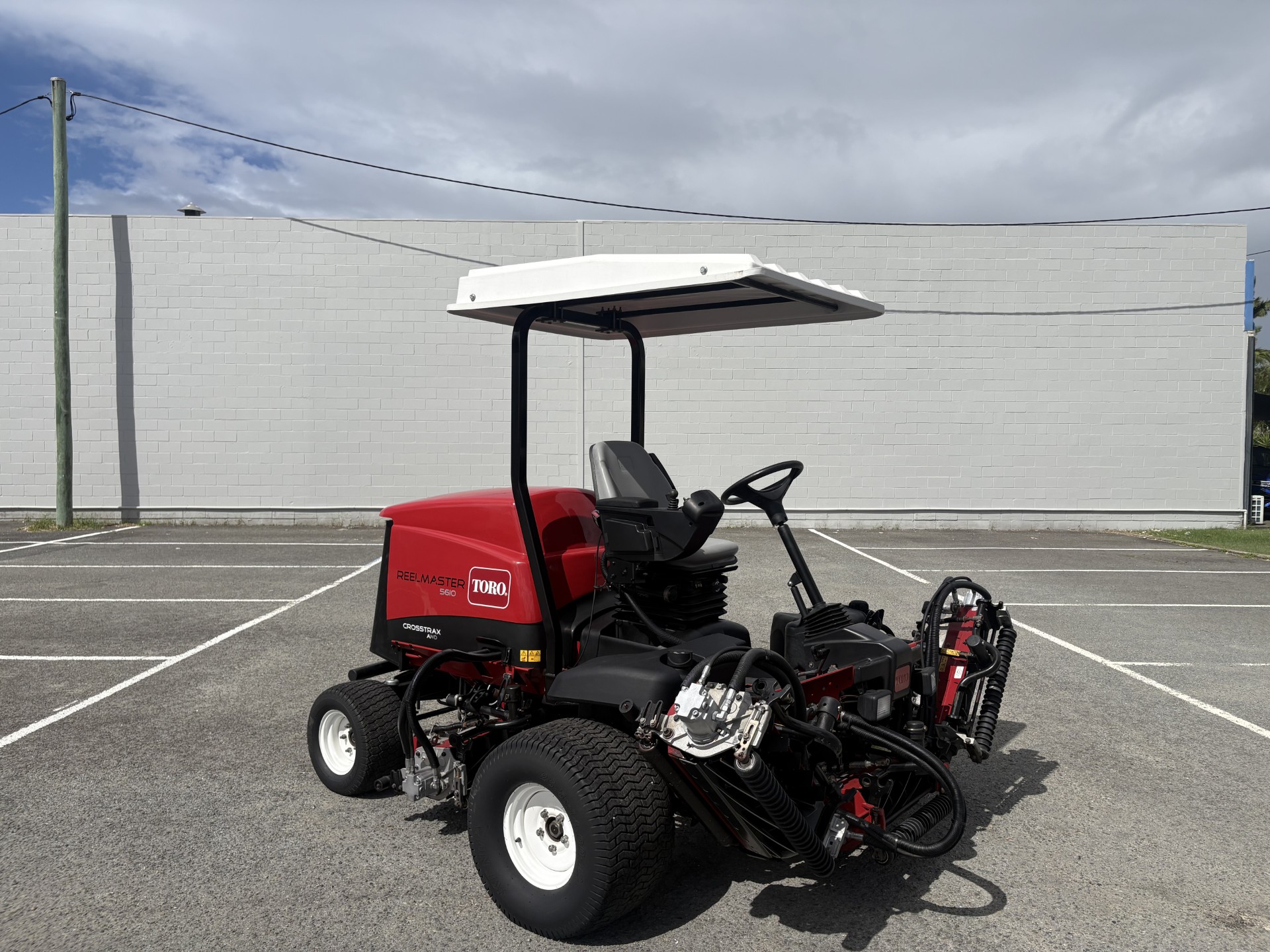

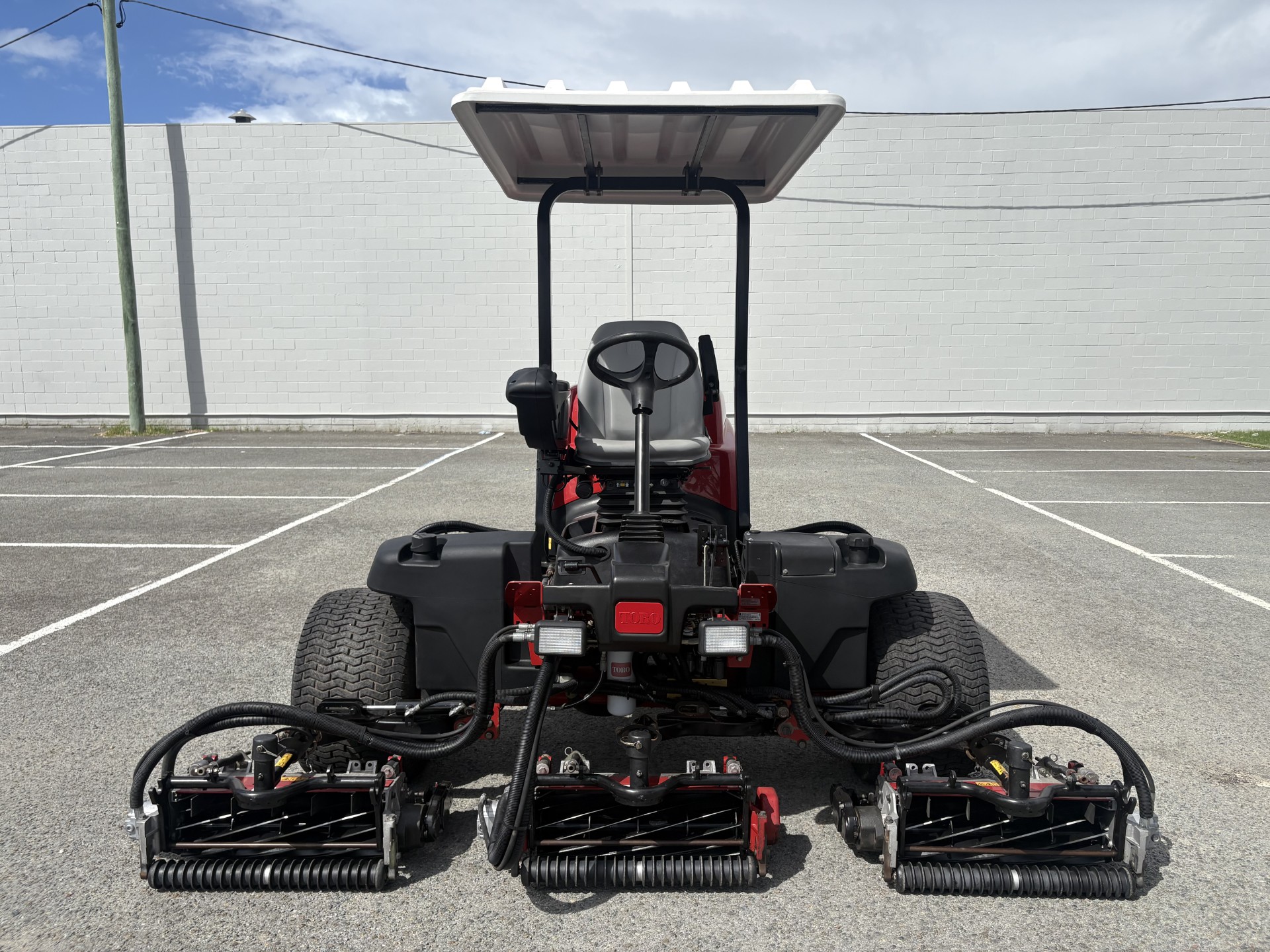

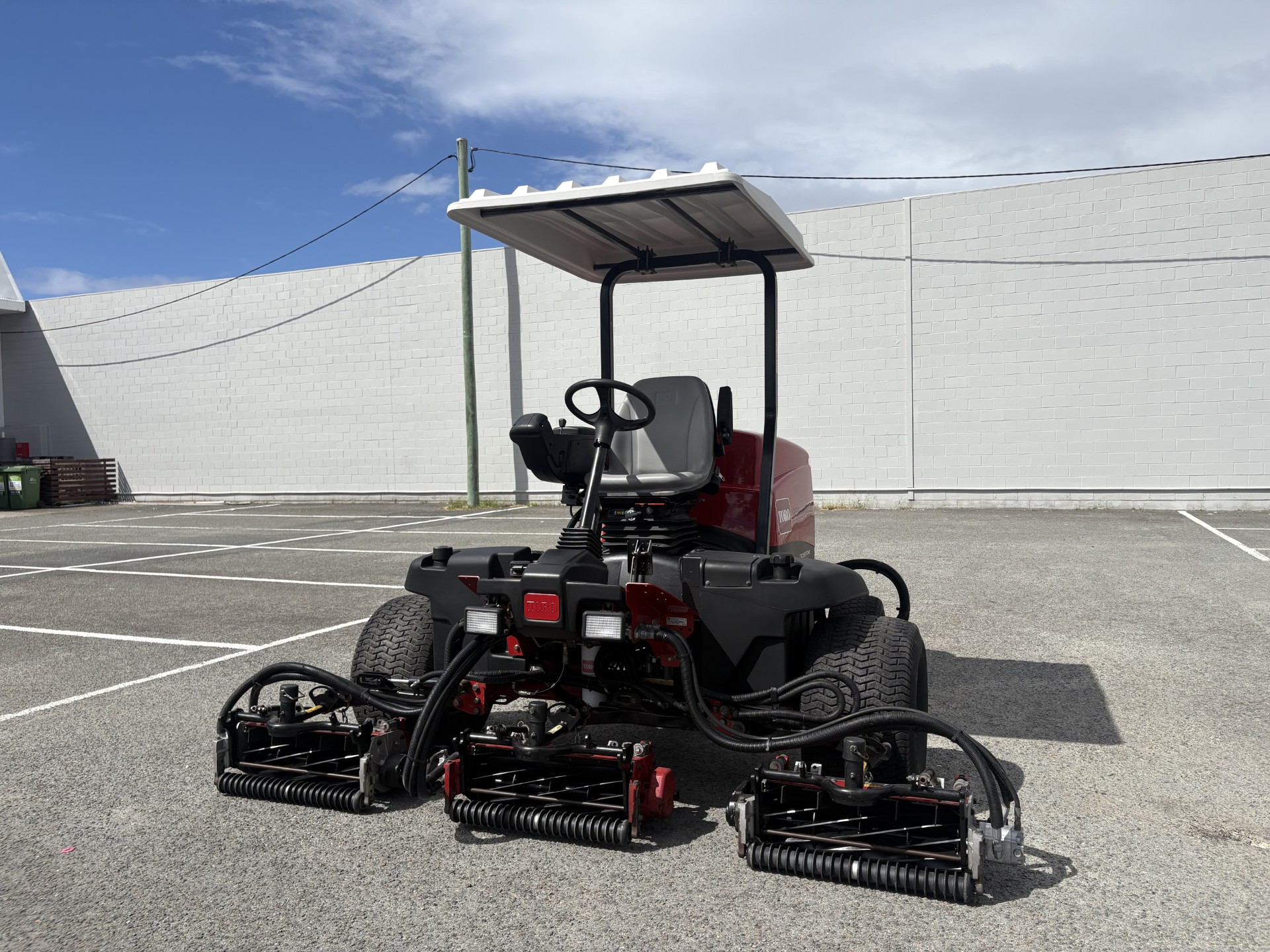

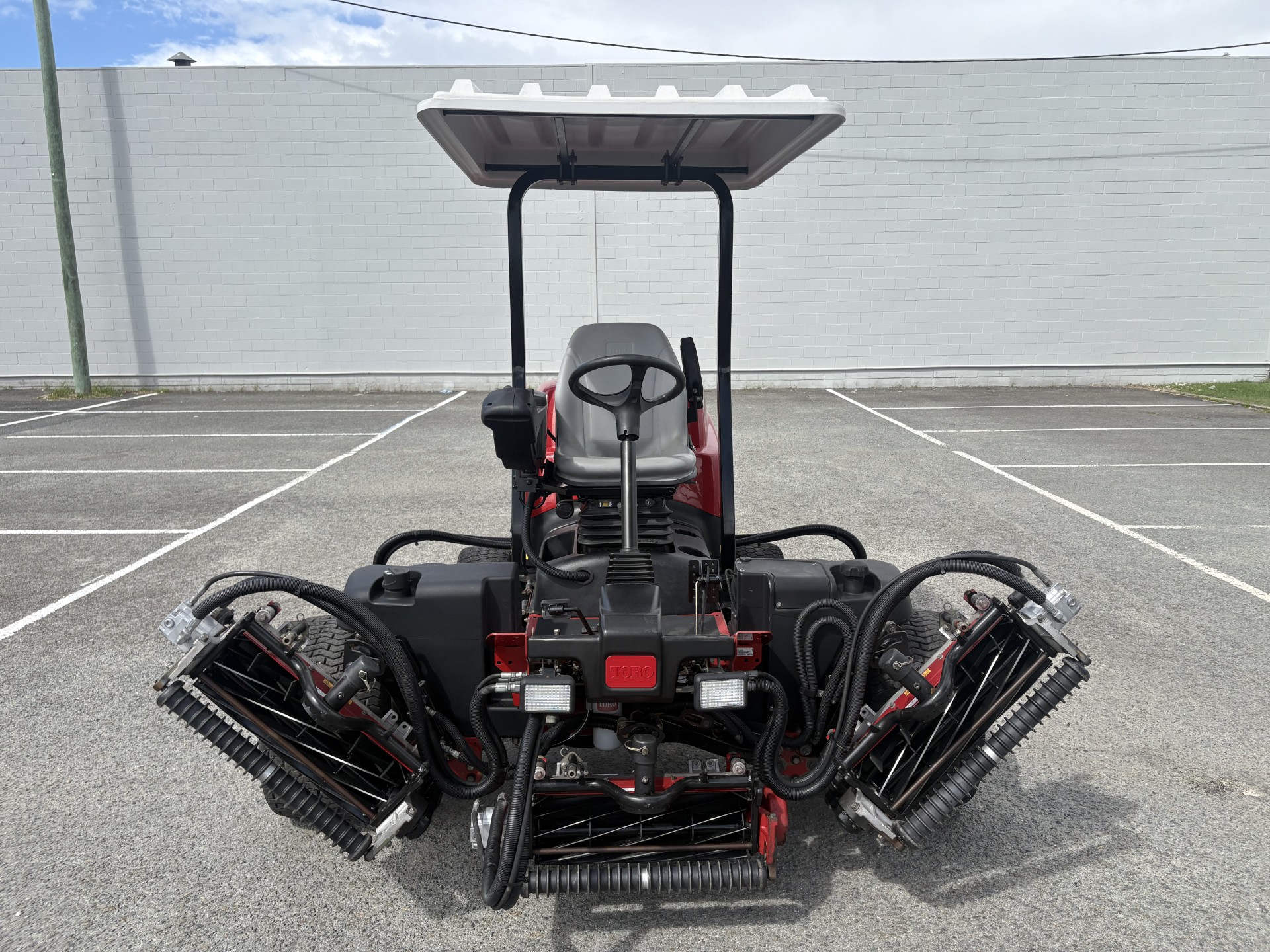

Used Reelmaster® 5610-D

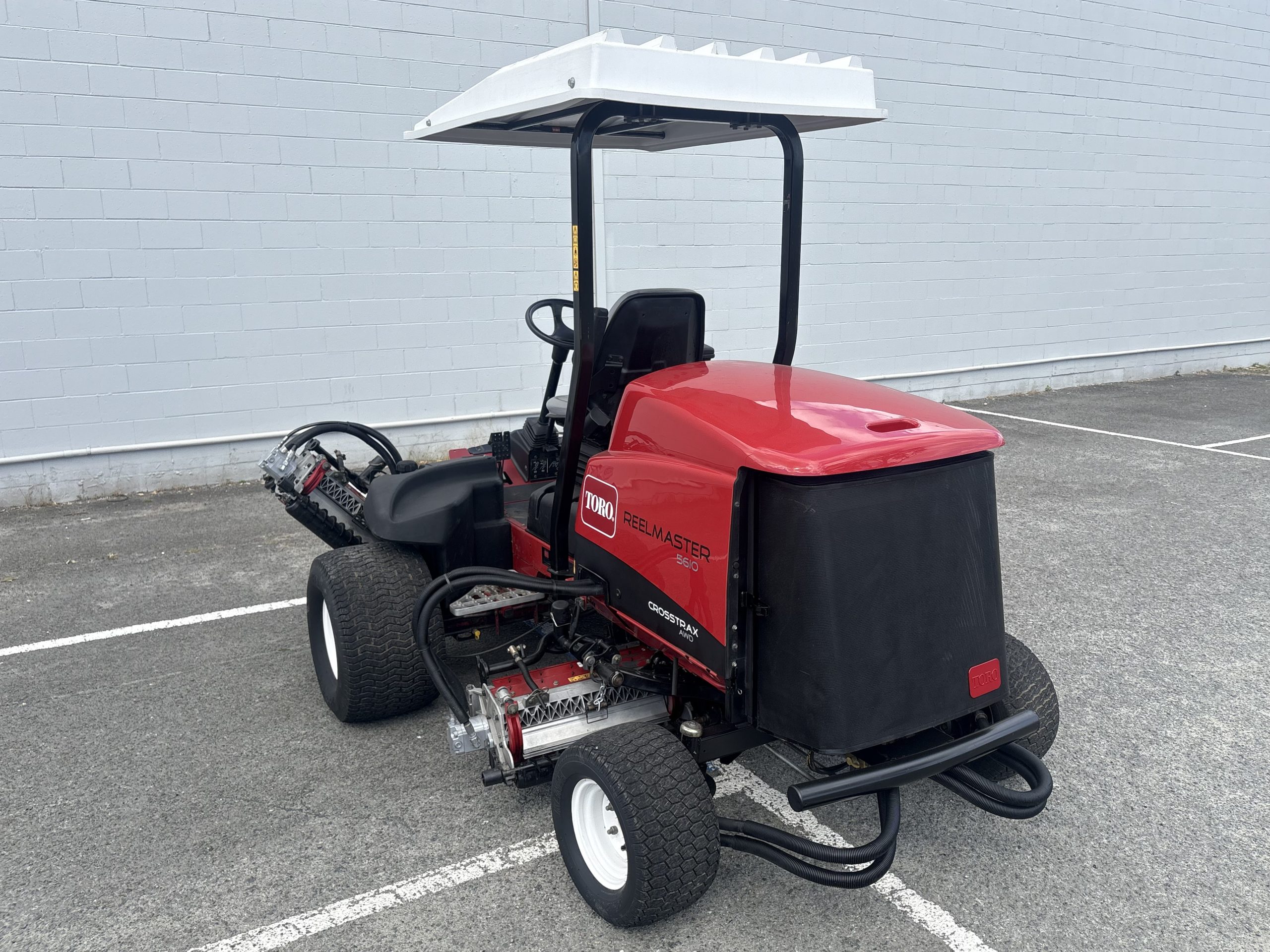

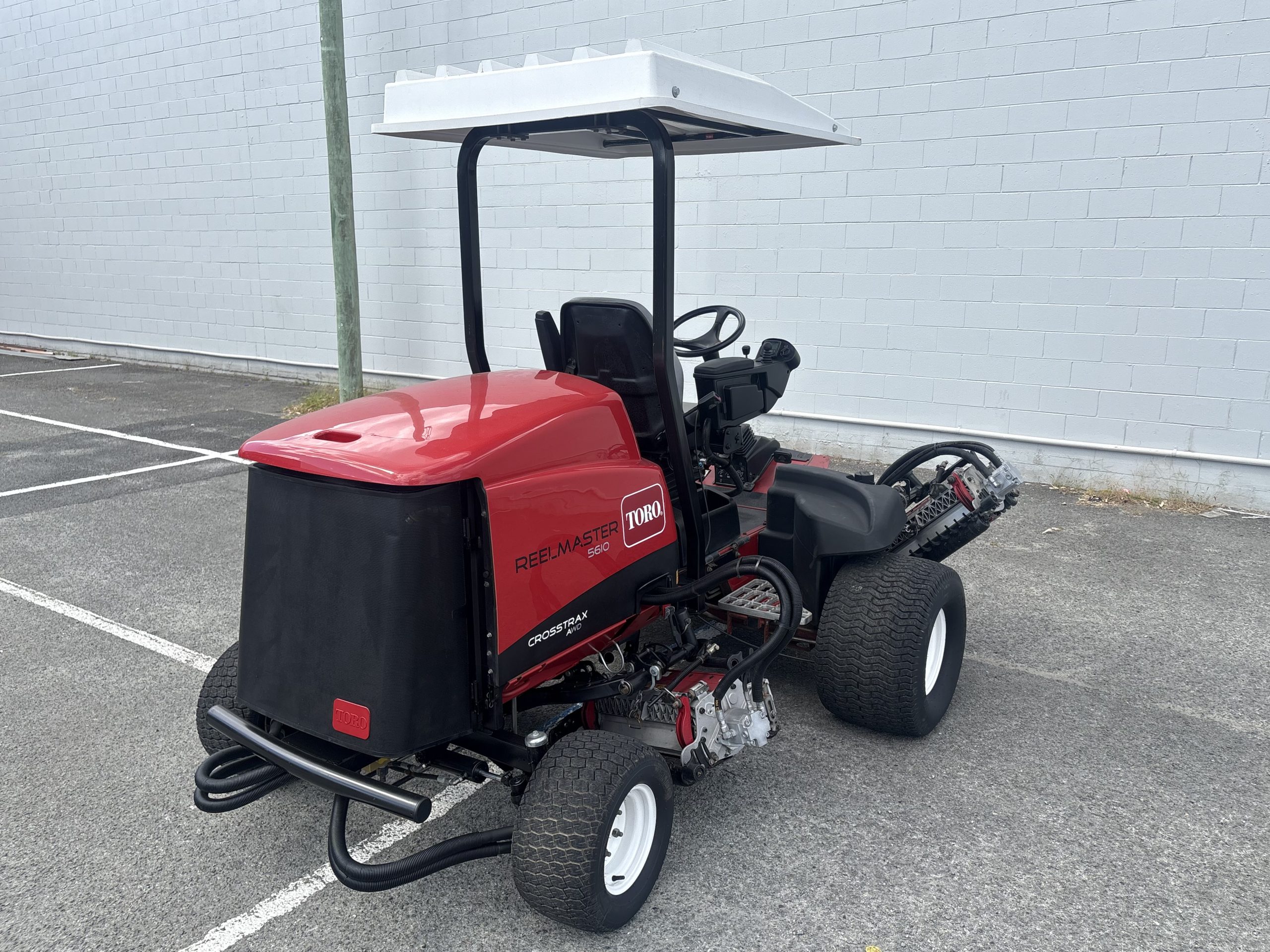

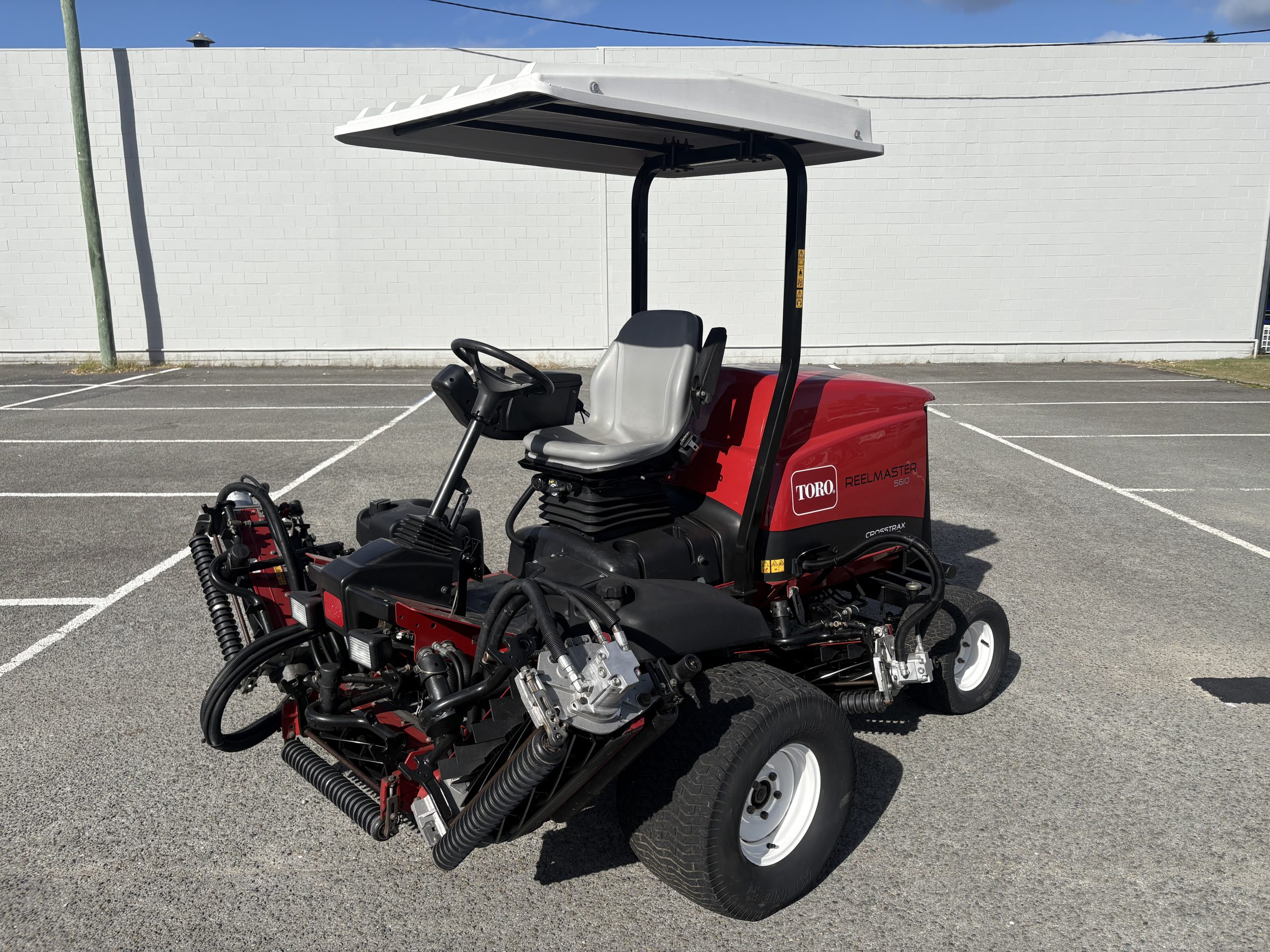

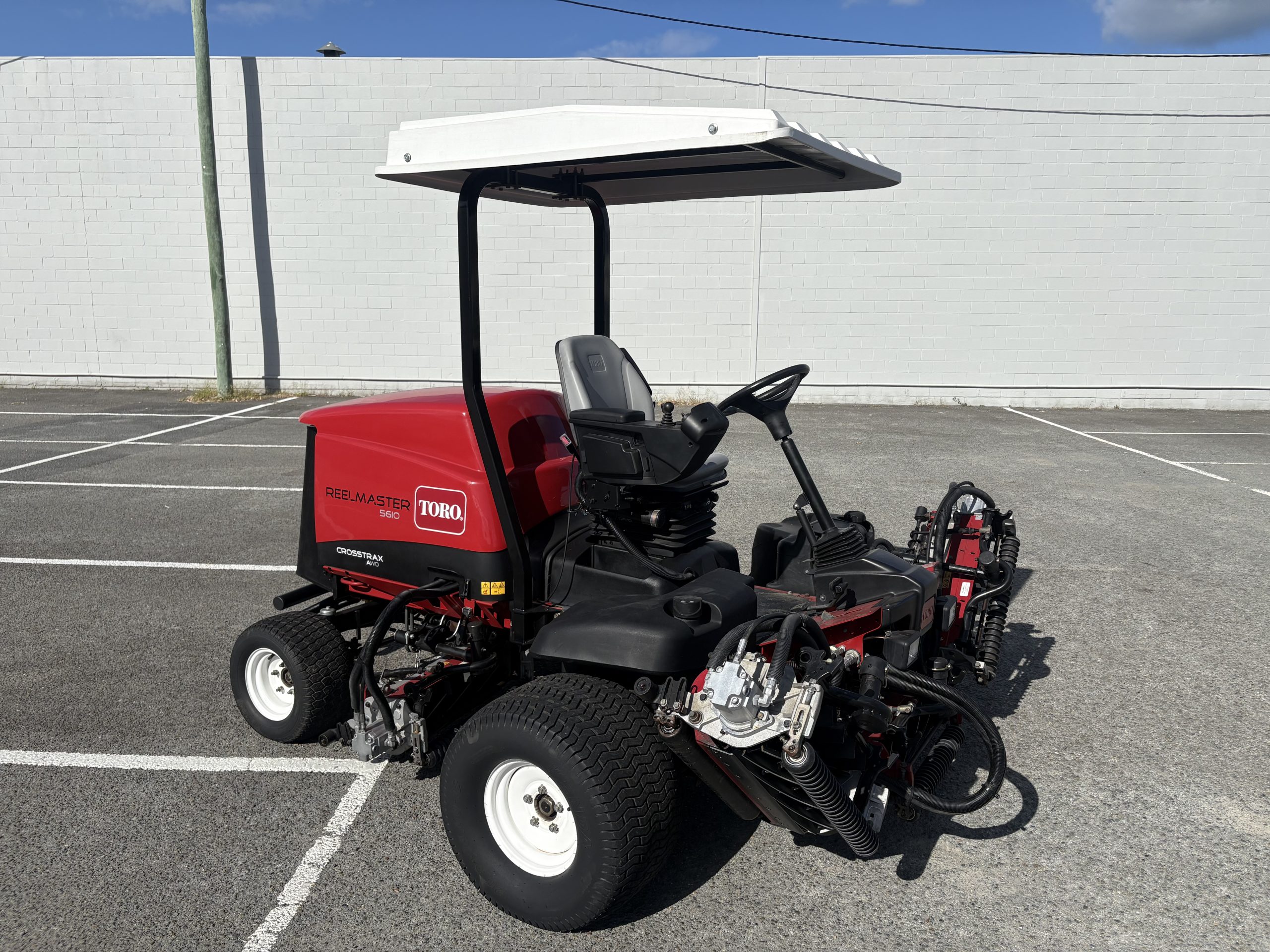

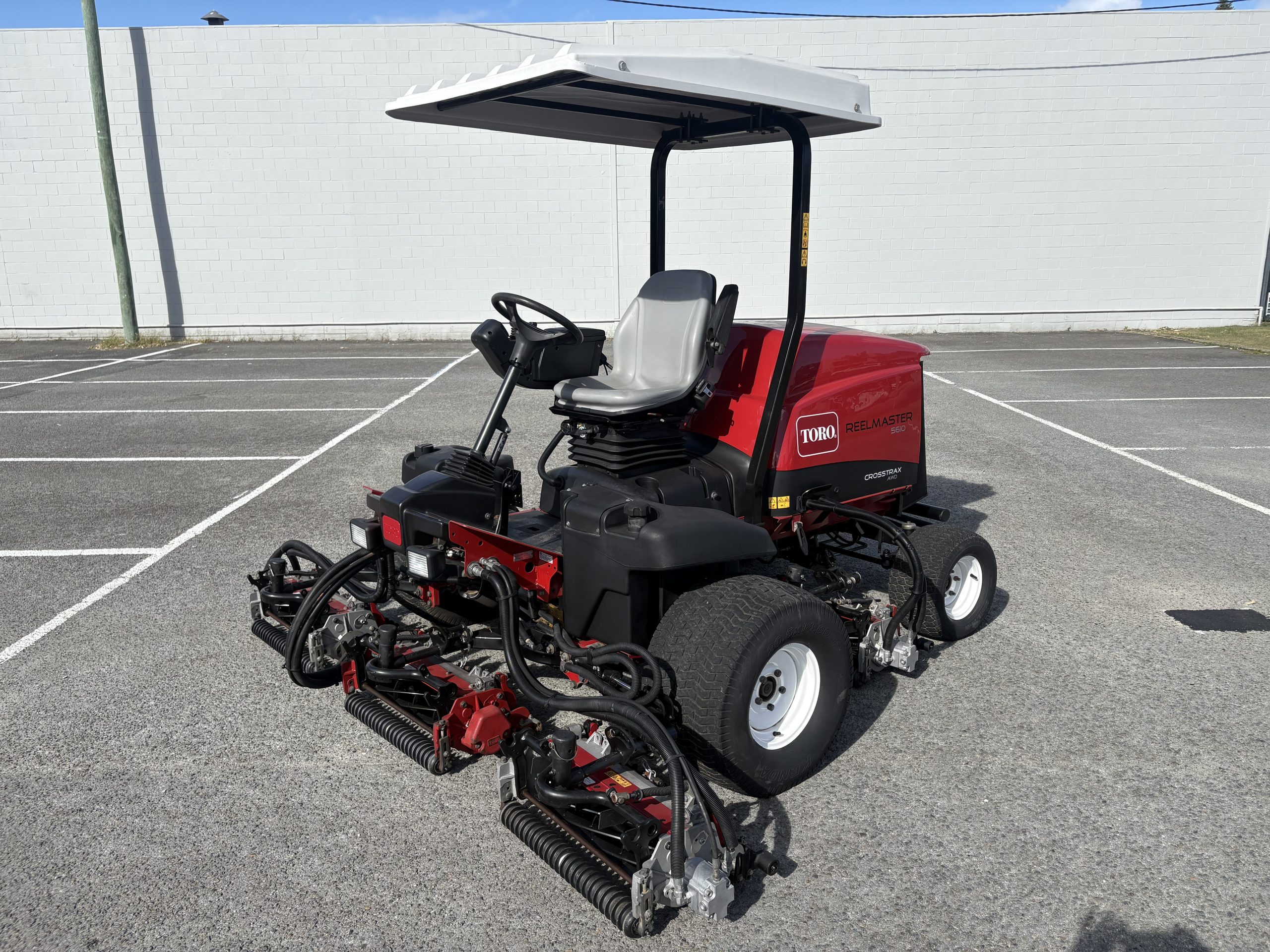

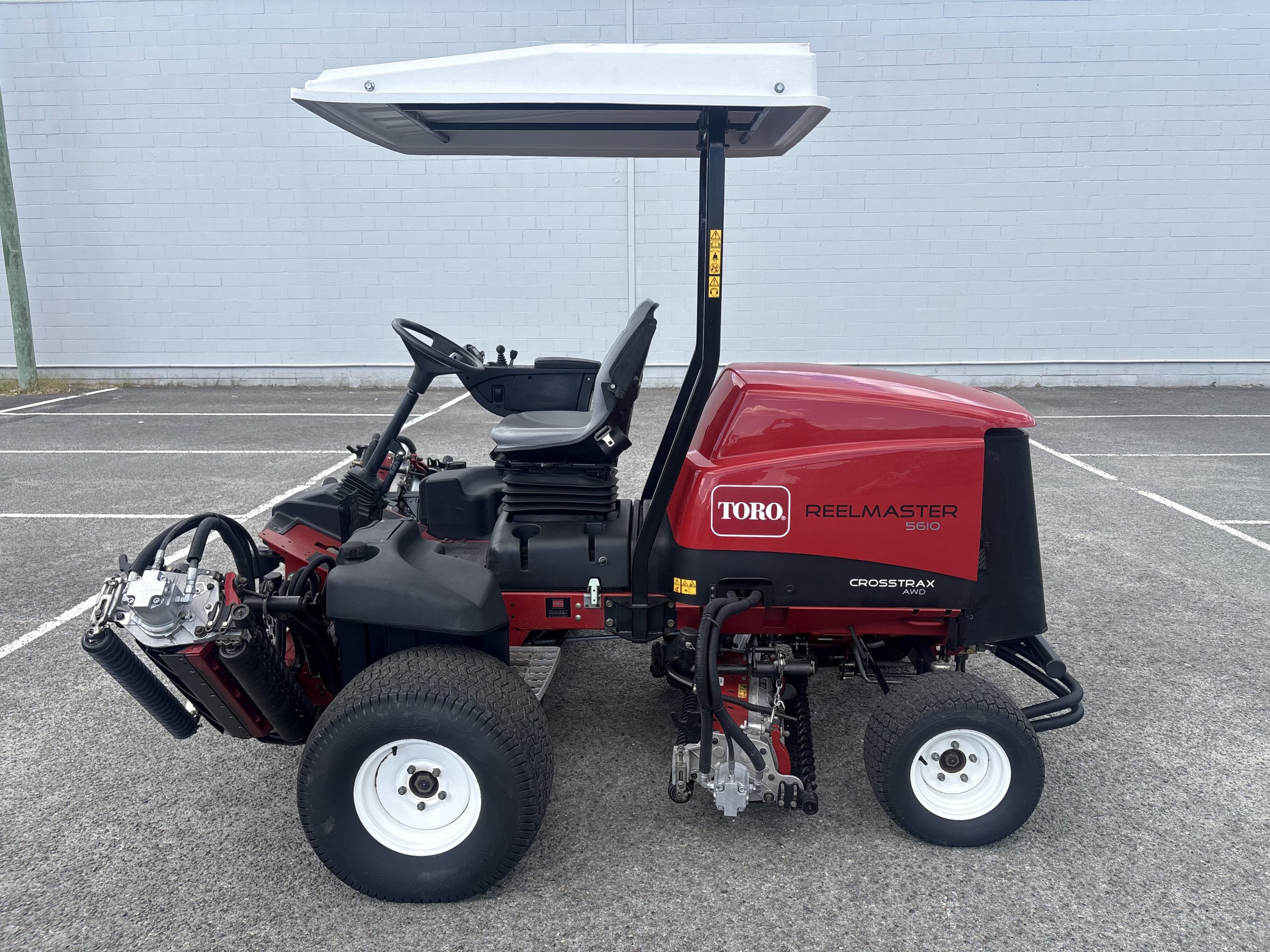

Used Toro Reelmaster 5610-D

Performance, productivity and quality are just words if a piece of equipment has not earned
them through actual customer usage. After more than 10 years of satisfying customers,
the Reelmaster 5610 has earned a reputation for delivering exceptional
performance, maximum productivity and high quality. And we haven’t stood still over the
years. Toro continues to spend time listening closely to our customers to better understand
their evolving requirements. Based on customer input, Toro engineers continually work to
refine and improve each fairway mower to meet those needs. Everything from operator
comfort and efficiency, to tractor performance, to cutting unit after-cut-appearance
improvements, and even ease of maintenance is reviewed in our relentless effort to maximize
productivity and efficiency.

Engine

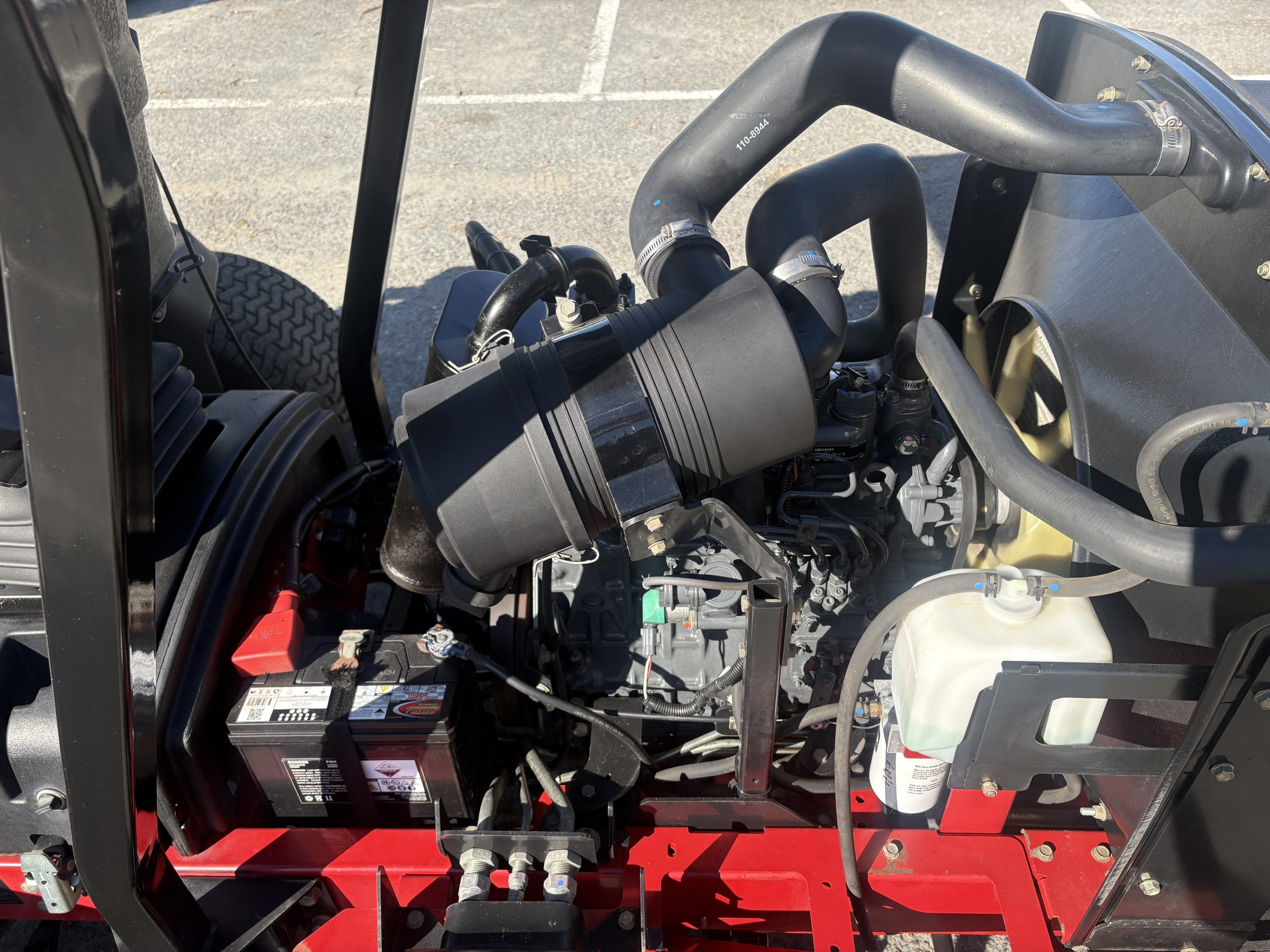

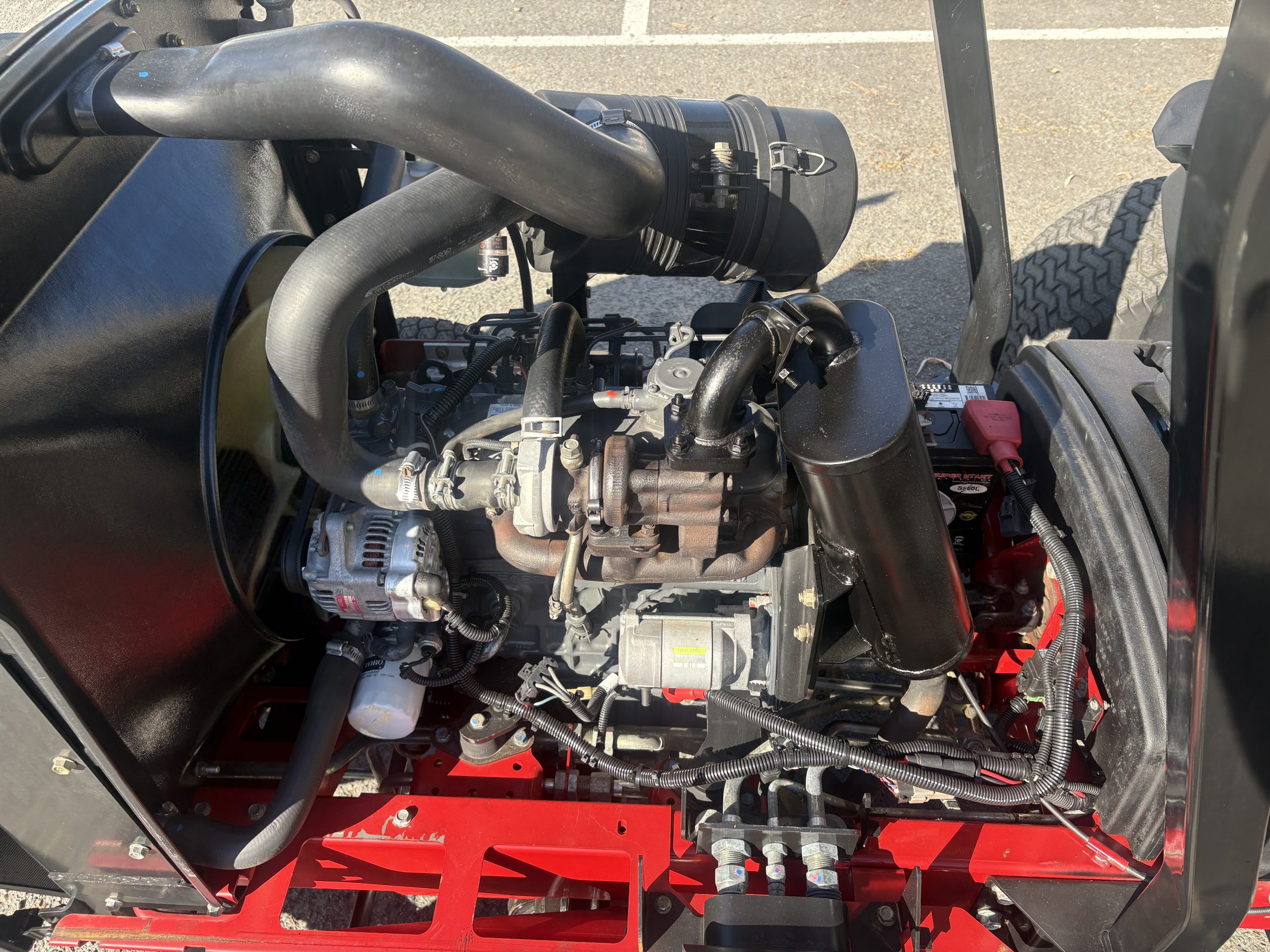

Kubota® 4-cylinder, liquid cooled, diesel engine. 44.2 hp (33 kW) @ 3000 rpm.

Lubrication

Pressurized lubrication system with 5.0 quart (4.7 liter) capacity.

Fuel Filter

Replaceable spin-on fuel filter/water separator.

Air Cleaner

Heavy duty three-stage, radial seal air cleaner with restriction indicator.

Cooling

Rear mounted radiator with industrial tube and fin construction, 6.3 fins per inch, 10.0 quart (9.5 liter) capacity.

Fuel Tank Capacity

13.5 gallon (51.1 liter) capacity. Biodiesel-Ready for use up to B-20 (20% biodiesel and 80% petroleum blend).

Hydraulic Oil Capacity

9.0 gallon (34.1 liter) capacity.

Traction Drive

Electronically controlled hydrostatic pump with individual wheel motors. CrossTrax® All-Wheel Drive system standard, which transfers power from the front wheels
to the opposite rear wheels via independent rear wheel motors.

Ground Speed

0-10 mph (0-16 km/hr) forward transport; 0-8 mph (0-12.8 km/hr) mow; 0-5 mph (0-8 km/hr) reverse transport; 0-4 mph (0-6.4 km/hr) reverse mow.

Tyres

Front traction tyres: 26.5 x 14-12 turf tyres; Rear steer tyres: 20 x 12-10.

Main Frame

High strength steel frame with welded construction.

Brakes

Dynamic braking through hydrostatic traction drive. Parking brake is activated when engine is turned off, when operator leaves seat, or by rocker switch.

Steering

Rear wheel, power steering with an independent hydraulic pump and circuit.

Gauges

InfoCenter onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics, indicates fuel level, coolant temp., low oil pressure,
alternator, engine hours, engine rpm, voltage, reel speed, backlap speed, glow indicator (diesel), lift/lower indicator.

Controls

Single foot-operated traction pedal. Hand-operated key ignition switch,
mechanical throttle, cutting unit raise/lower joystick, cutting unit engage
switch, parking brake switch, cruise control switch, and LED headlight switch
all positioned on right hand pivoting control console.
Single foot-operated traction pedal. Hand-operated key ignition switch, cutting
unit raise/lower joystick, cutting unit engage switch, parking brake switch,
cruise control switch, and LED headlight switch all positioned on right hand
pivoting control console.

Electrical & Interlocks

Heavy duty 12-volt battery, 570 CCA, 40 amp alternator. Electronic control unit is a microprocessor based, solid state control unit with diagnostic capabilities. Traction
pedal, parking brake, operator presence in seat, and cutting unit engage/disengage safety interlock switches.

Reel Drive

Reel drive circuit is split independently for front and rear cutting units. Hydraulic functions controlled by an integrated hydraulic control block. Reel speeds are
electronically adjustable in nine incremental settings. Desired clip rate remains consistent as max mow speed is adjusted. Standard on-board backlapping.

Cutting Unit lift/lower

Front and rear cutting unit lift/lower is sequenced for uniform starting and ending points.

Seat

Deluxe high back suspension seat with fore, aft, height and weight adjustment.

Rops

Standard with seat belt

Dimensions

HEIGHT 63″ (160 cm) seat top, 85.5″ (217.2 cm) top of ROPS.

LENGTH 111″ (281.9 cm)

WHEEL BASE 60″ (152.4 cm)

OPERATIONAL WIDTH 116″ (288.3 cm)

TRANSPORT WIDTH 92″ (233.7 cm)

WEIGHT 3,213 lbs (1,458 kg) 3,261 lbs (1,480 kg



Fully Serviced

Warranty Available

Delivery Australia Wide
