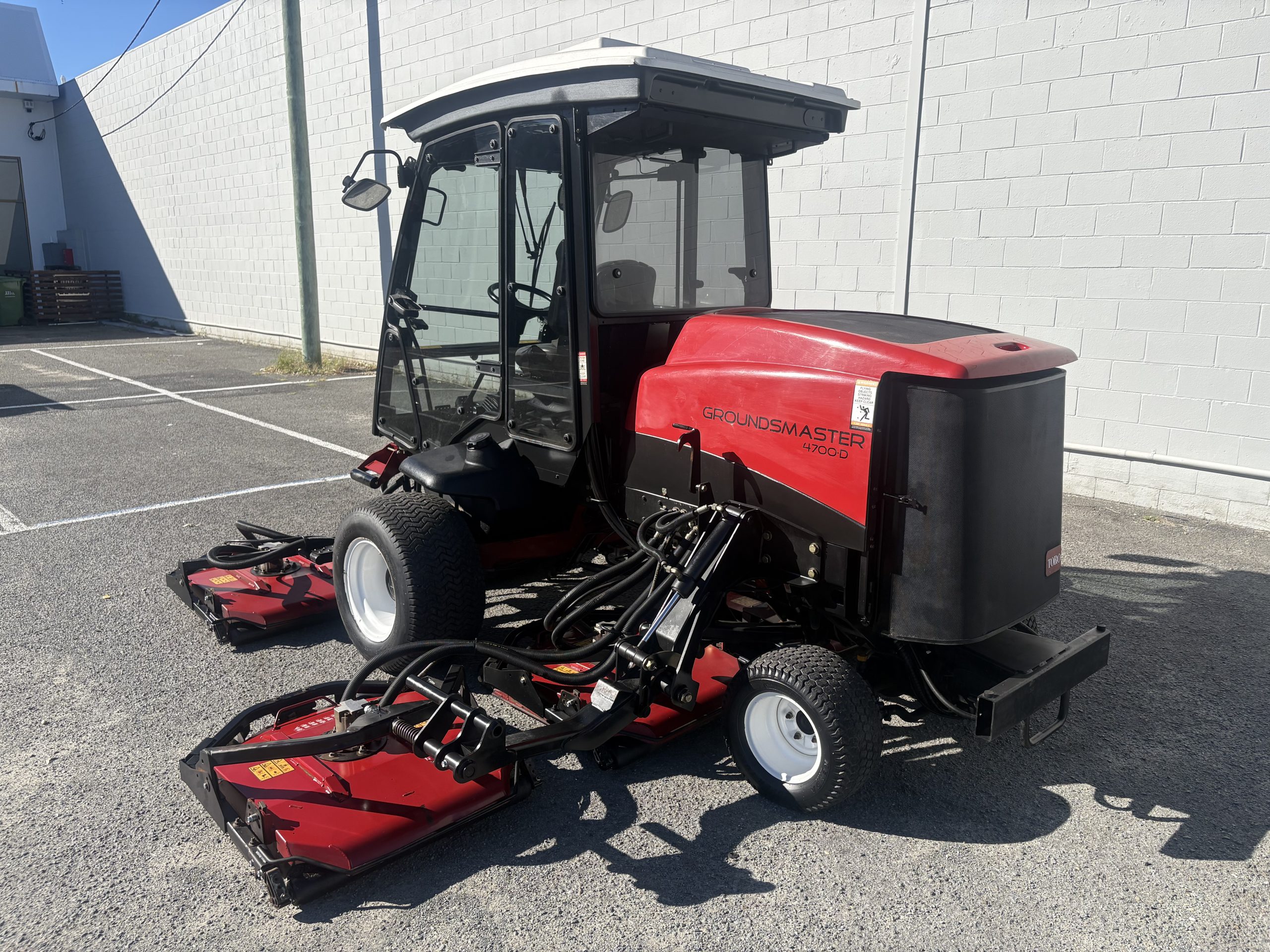

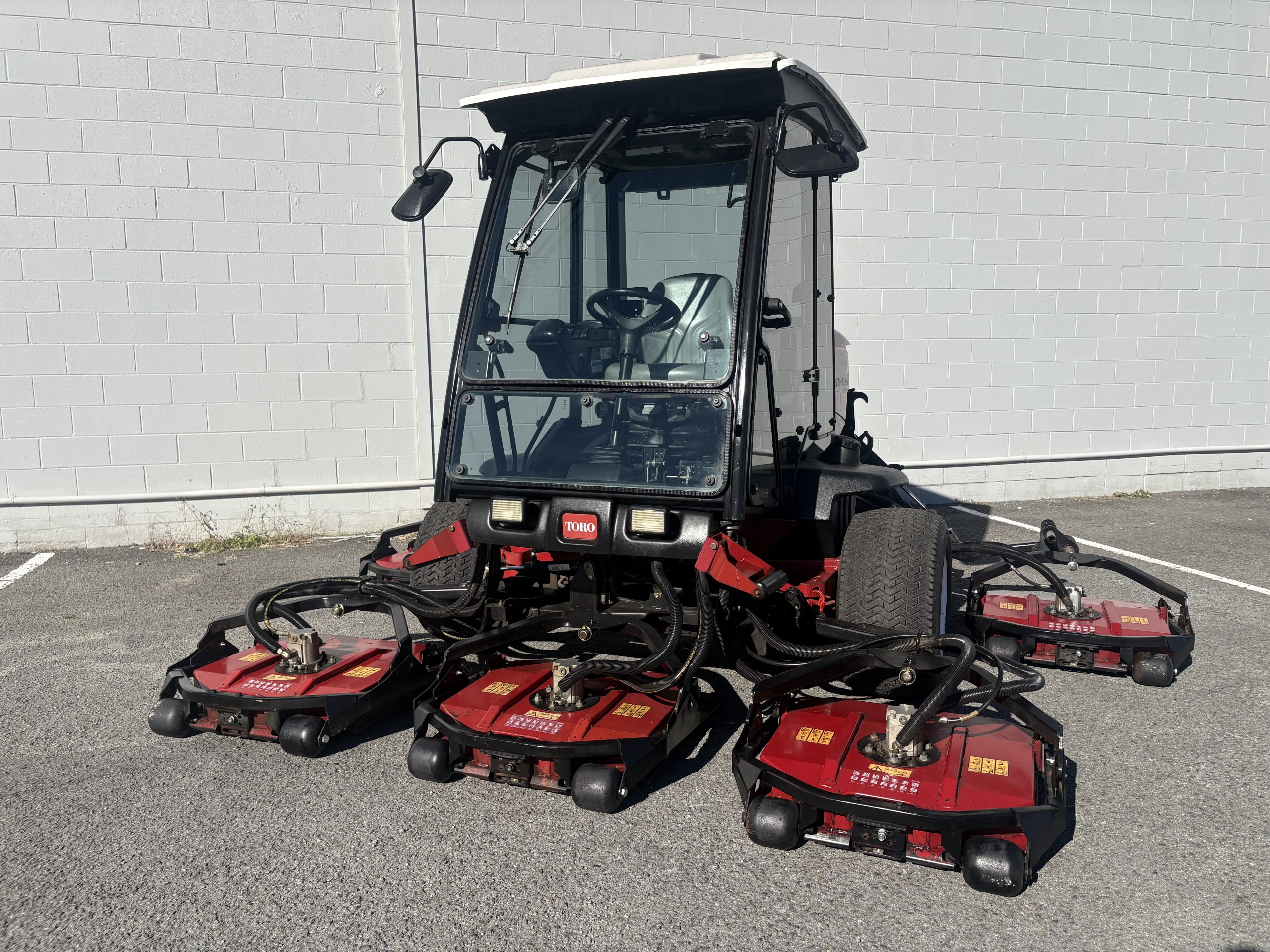

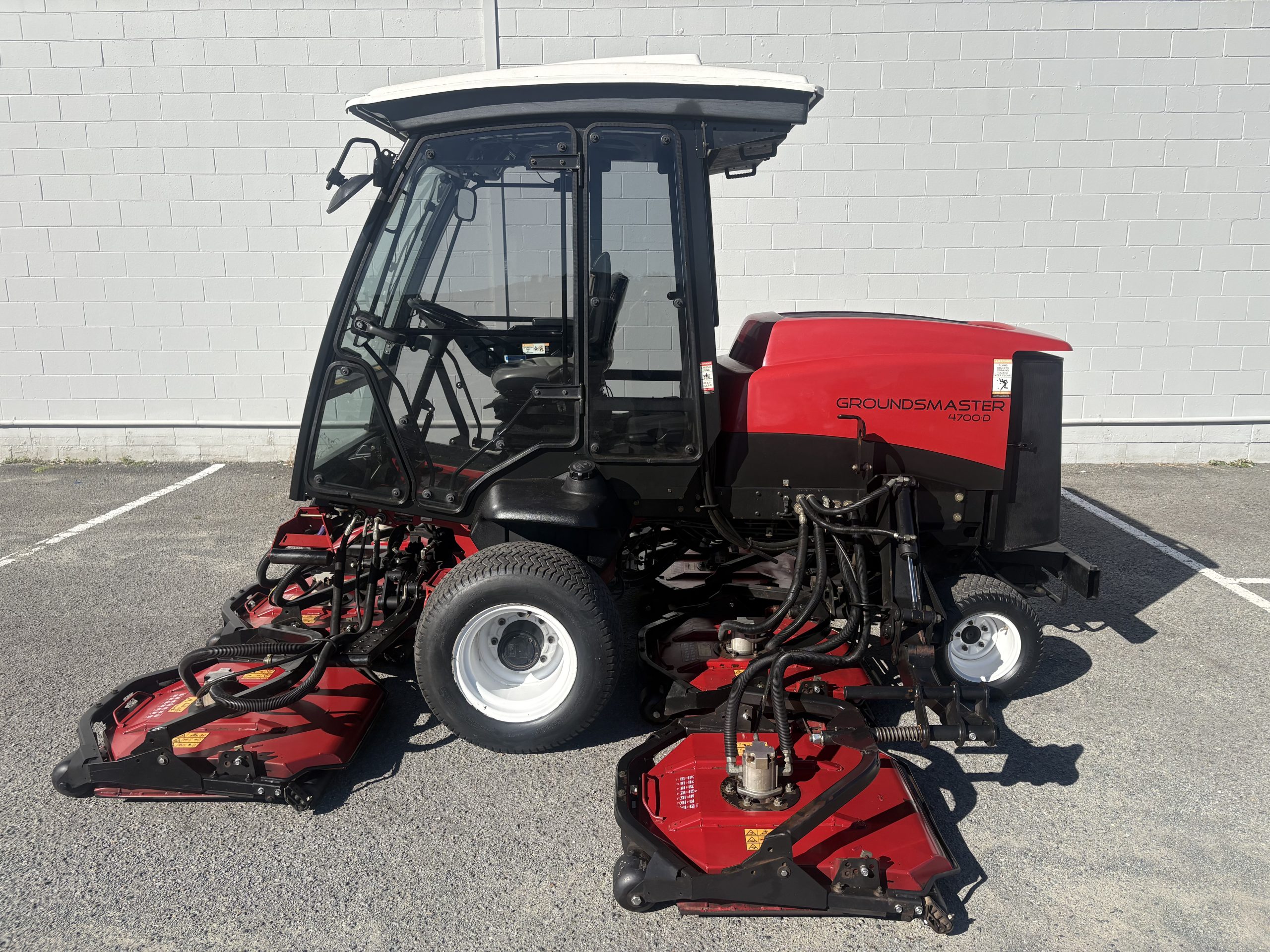

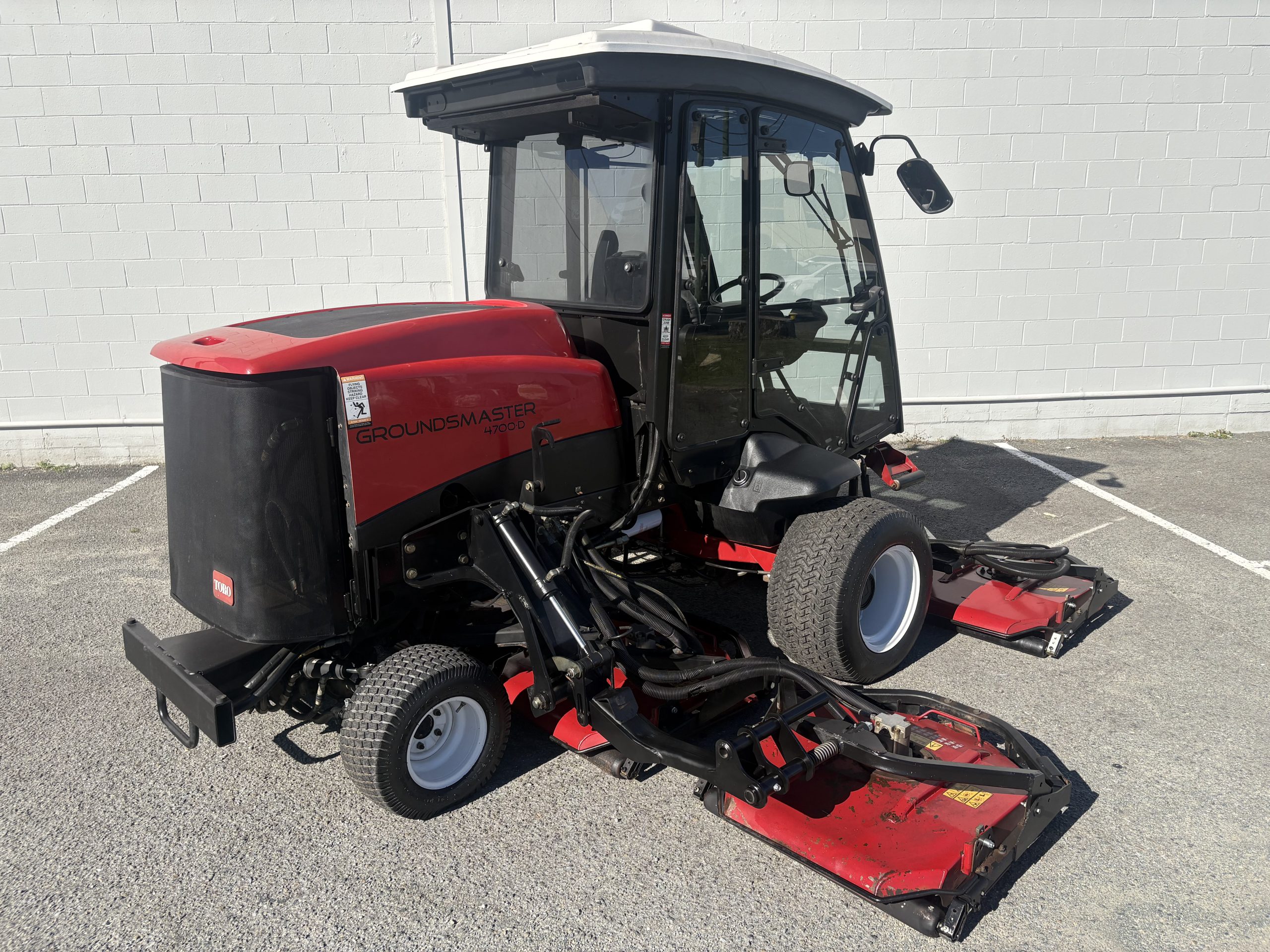

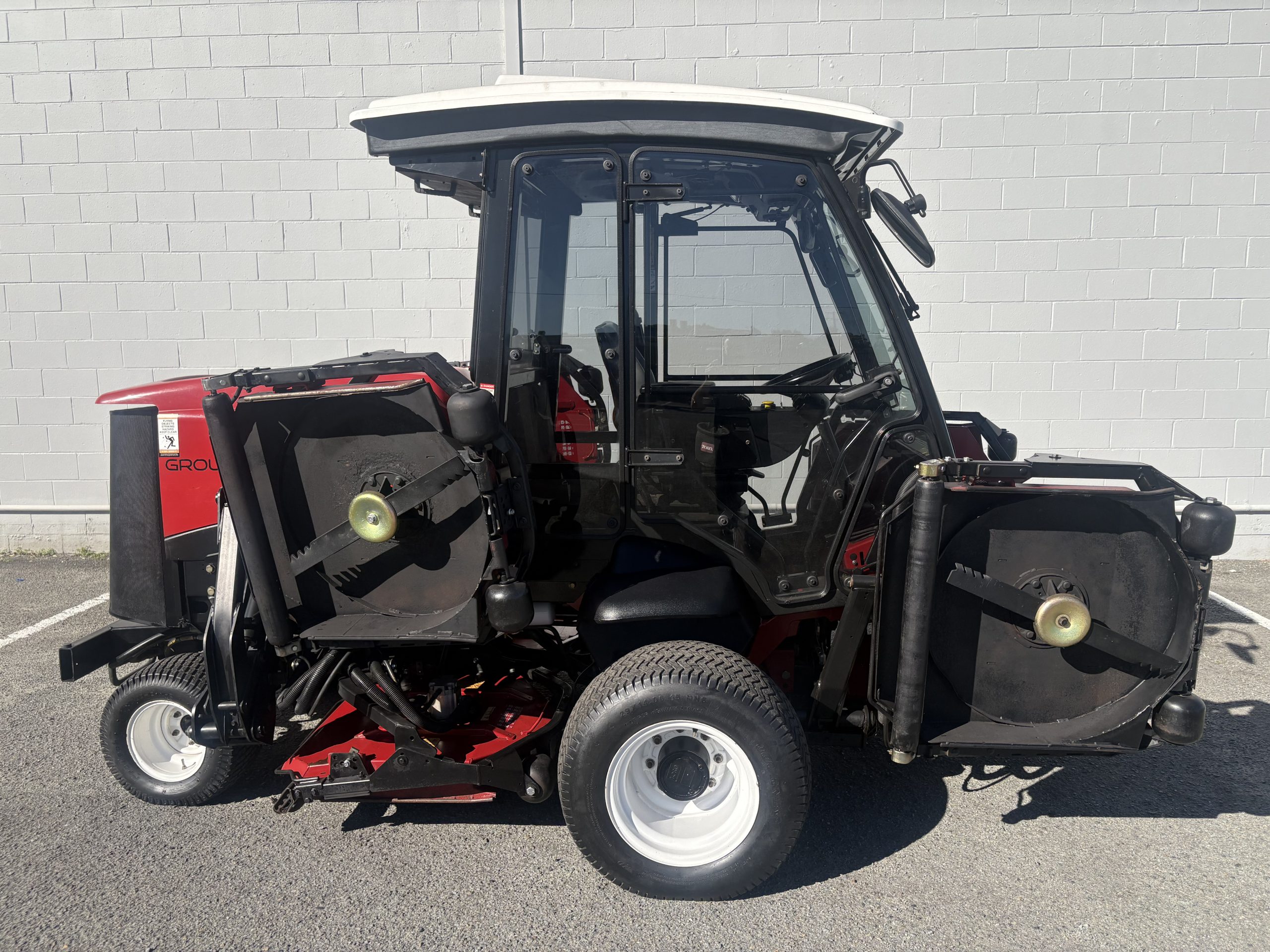

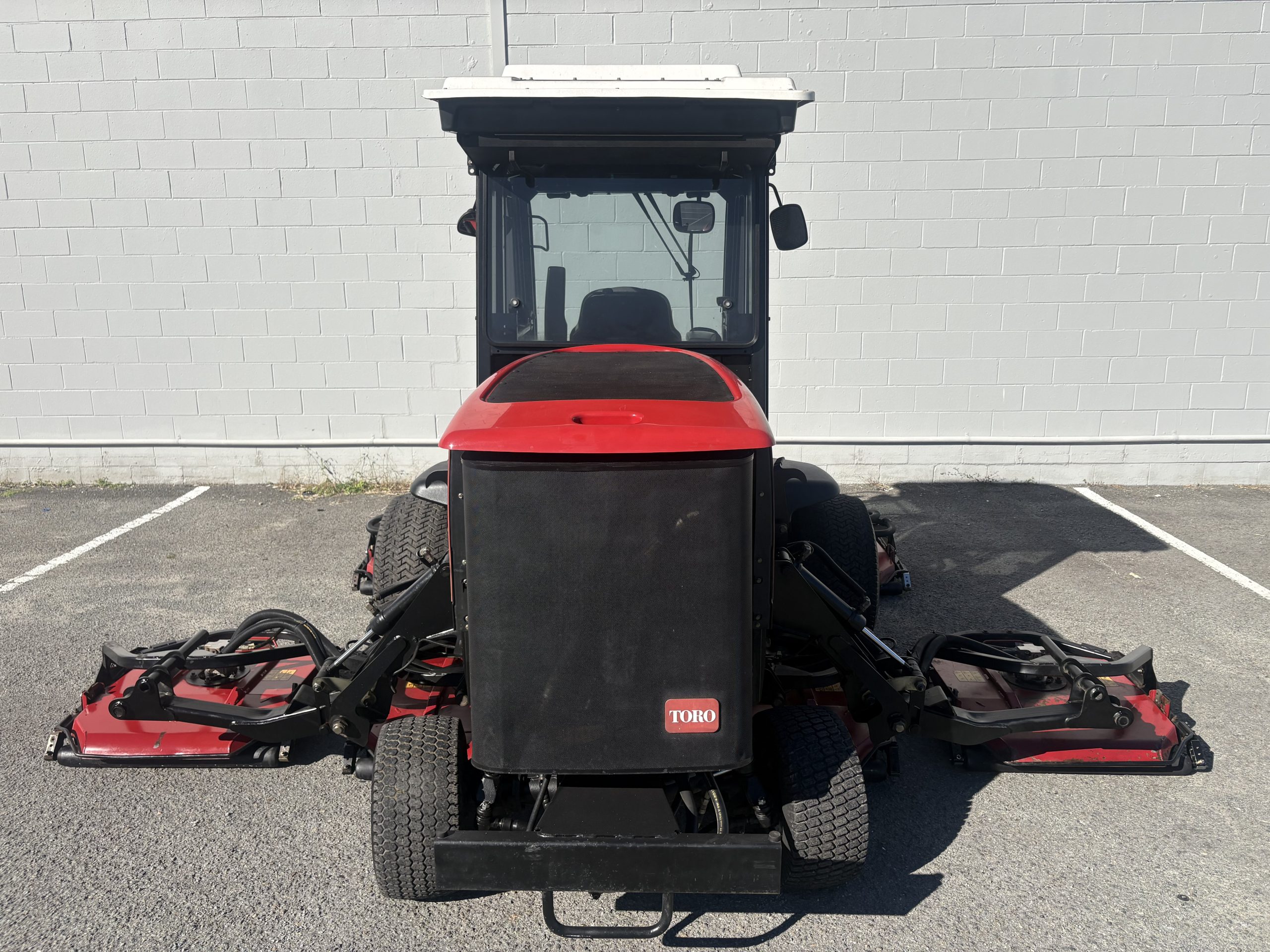

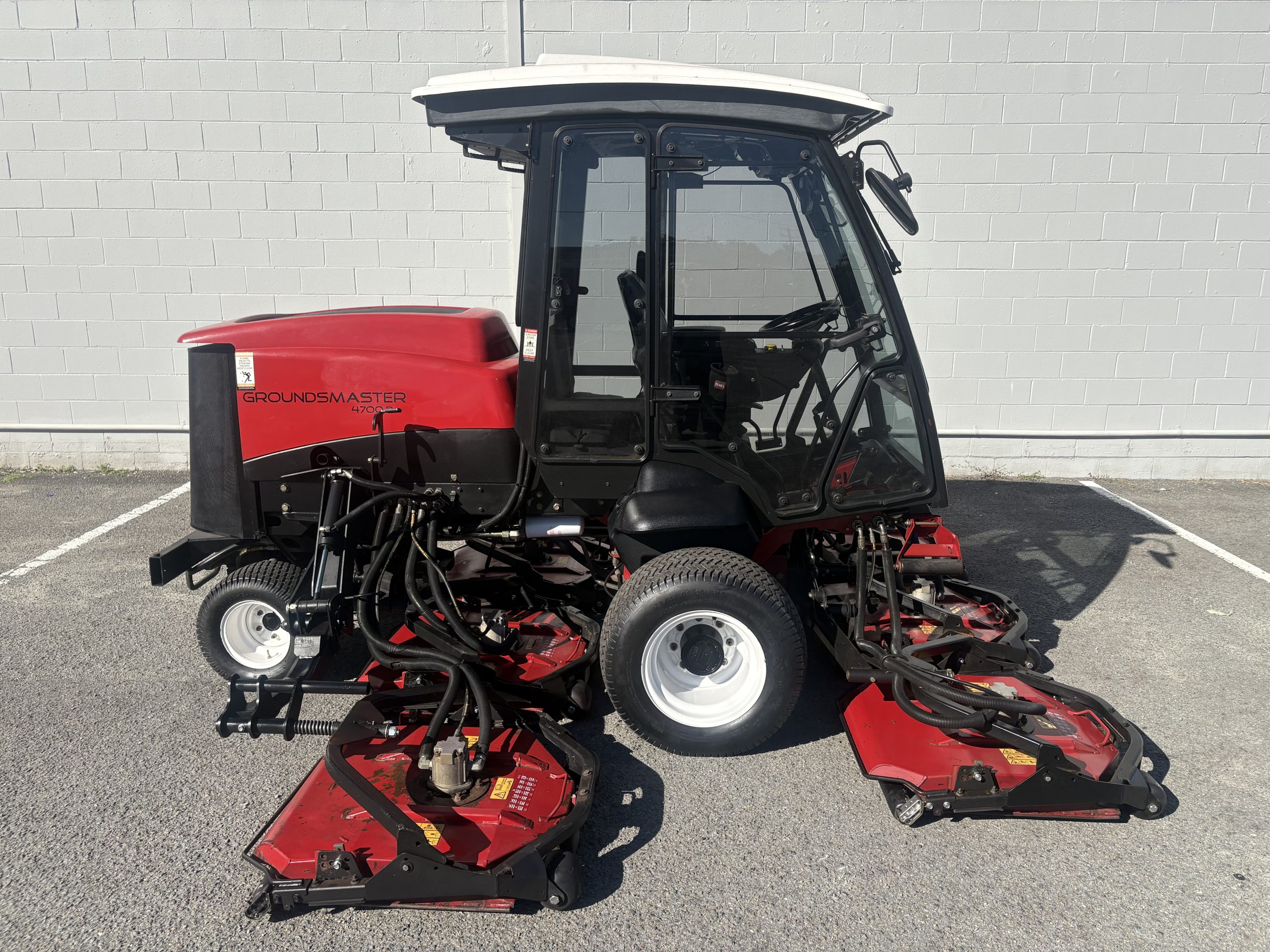

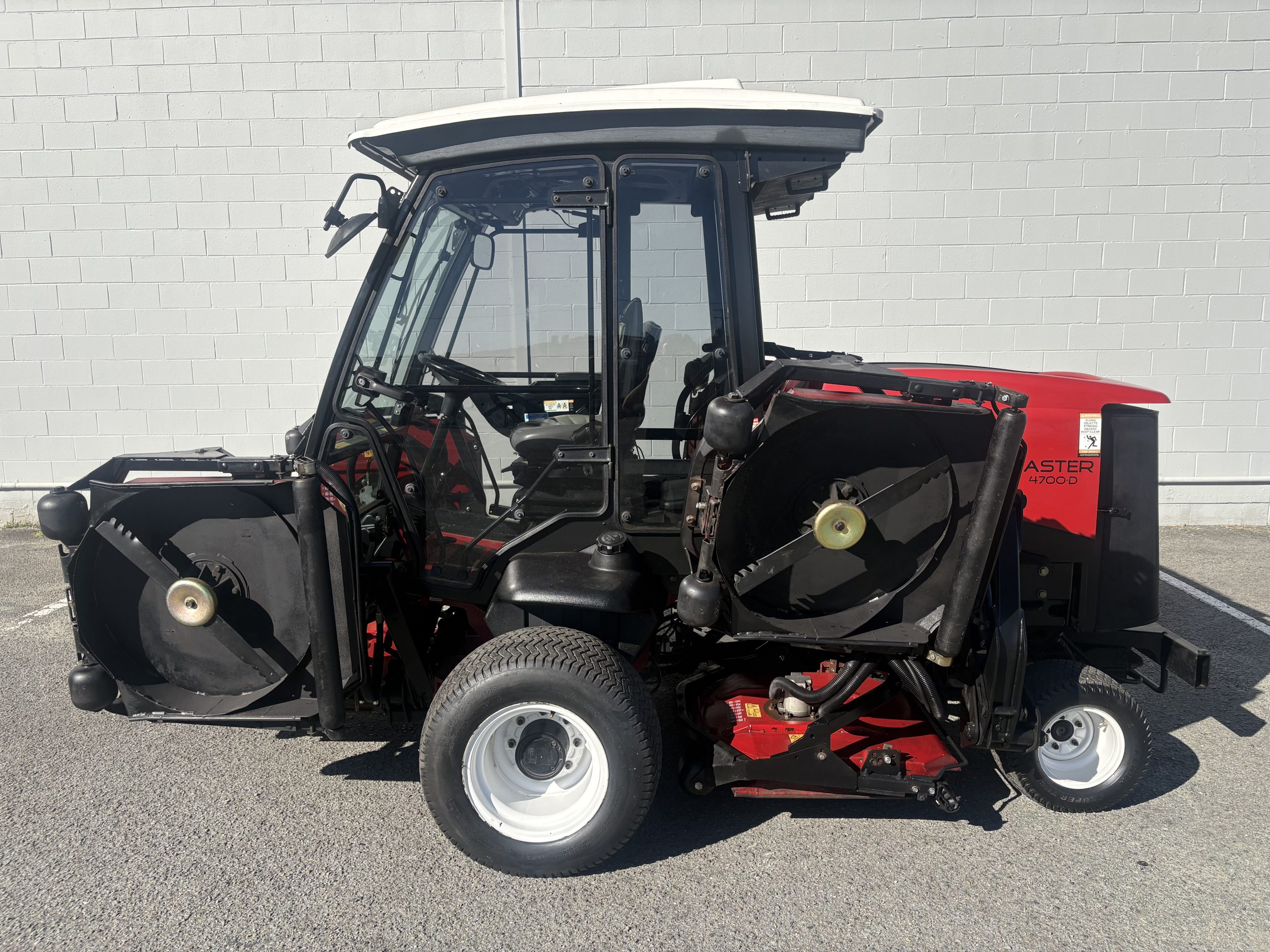

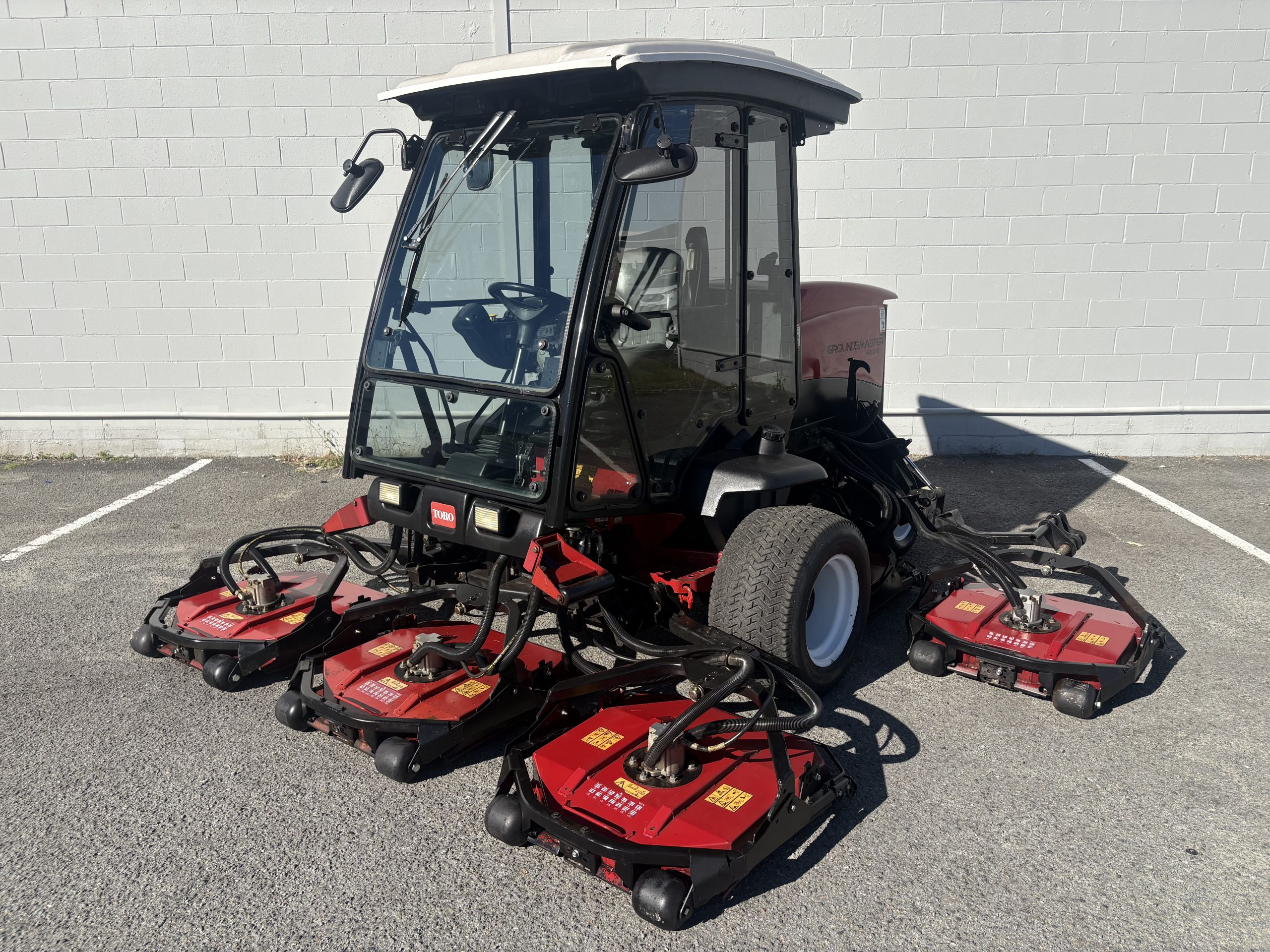

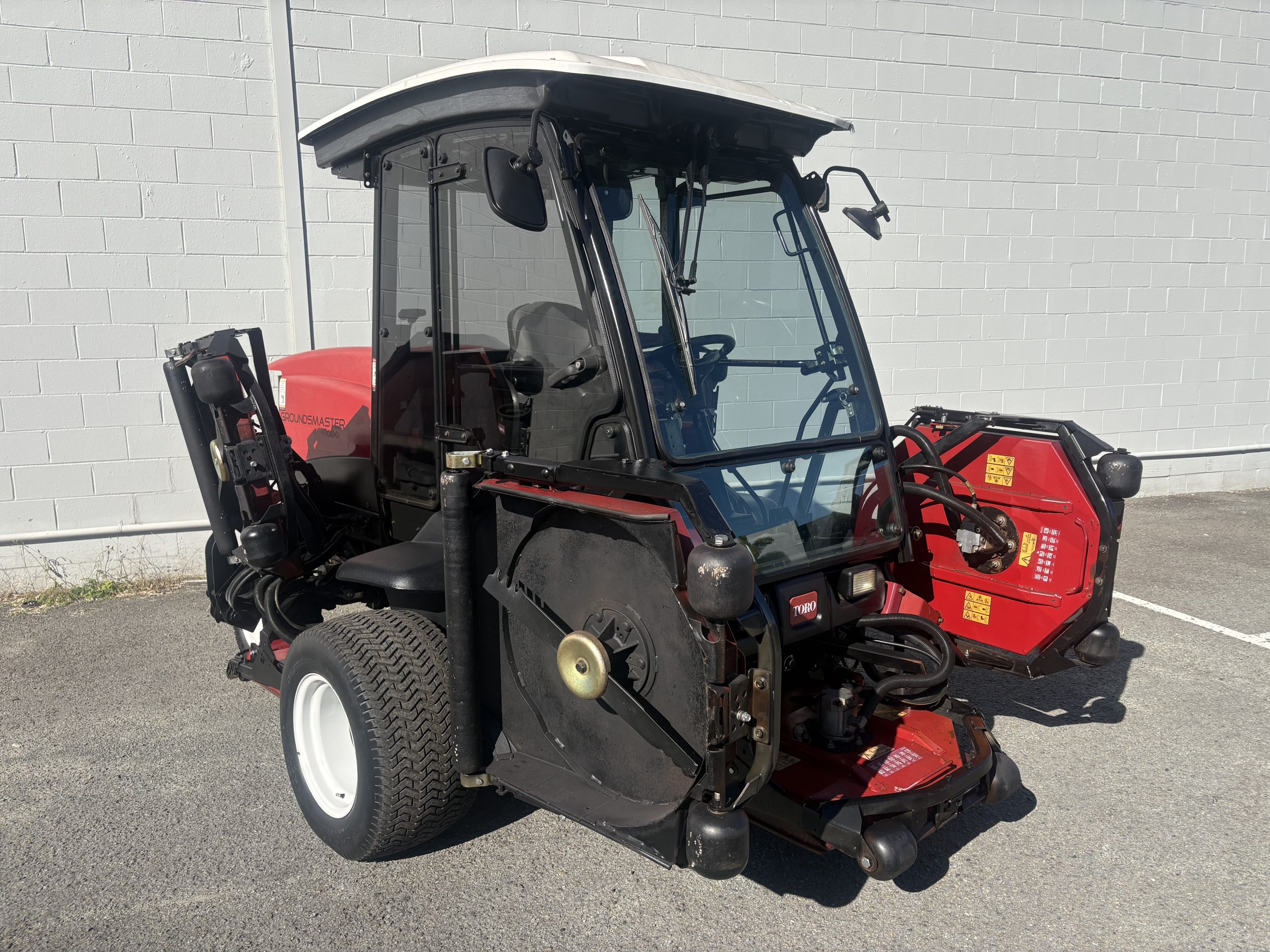

Used Groundsmaster® 4700-D – Air-Con Cab

$69,990.00

*Excluding GST & prices starting from. All prices in AUD. FINANCE AVAILABLE*

⌛Run – 3386 Hours

⌛PTO – 2429 Hours





✅ Air Condition

✅ Fully Serviced

✅ Professionally Cleaned

✅ Warranty Available

✅ Delivery Australia Wide

📞 Chris Paterson – PH – 0418755697

📞 Danny Foott – PH – 0487962042

📞 Freecall – 1800 704 574

✉️ Email – chris@golfmowersaustralia.com.au

✉️ Email – sales@golfmowersaustralia.com.au

⛳ We have similar Air-Conditioned machines with varying hours, please call for details!

SKU: Toro GM4700-D - Cab Categories: , ,
Description

  • The Contour™ Plus cutting technology takes quality of cut to a whole new level
  • Mow up to 4.3 hectares per hour to get the job done fast
  • Smart Power® traction allows even an inexperienced operator to achieve a consistent cut

Is wider better? That’s like asking if more productivity is better. The Groundsmaster® 4700-D answers with a resounding yes, in the form of an awe-inspiring 381 cm width of cut, powered by a 48 hp (36 kW) Yanmar® engine that lets you mow up to 4.3 hectare/hour. Add in 7 floating Contour™ Plus cutting units, full-time 4-wheel drive and the innovative Smart Cool™ system, and you have productivity and performance no other mower can touch.

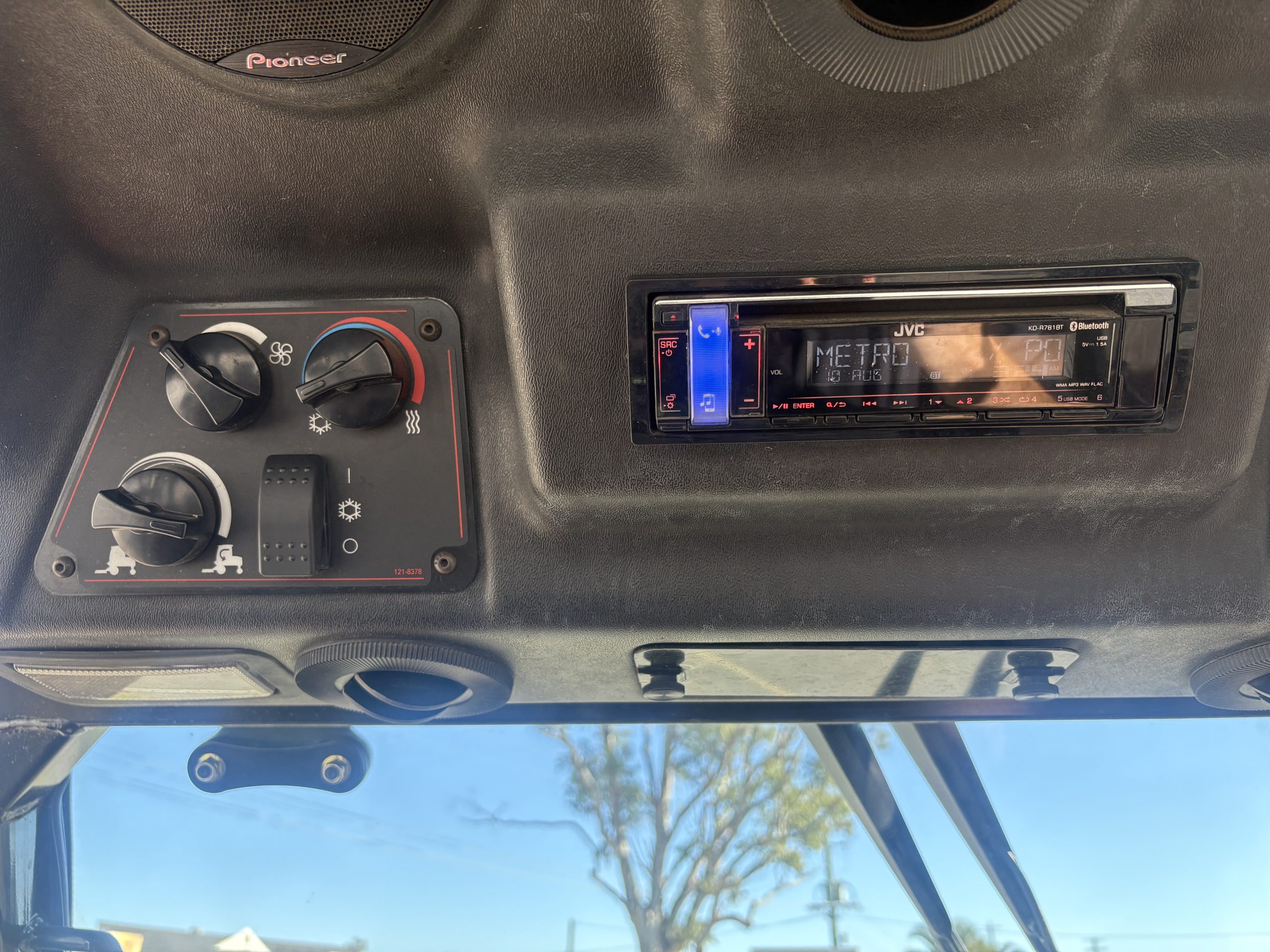

Air Conditioning

Toro offers factory-installed, climate-controlled cabs for large commercial mowers. These air-conditioned cabs feature built-in ROPS (Rollover Protection), pressurized air filtration to block dust, and 360-degree vents to keep operators comfortable in all weather. Toro designs these cabs to protect you from the elements while you work.

Contour™ Plus Rotary Cutting Unit

The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut and a modified rear discharge opening disperses clippings more evenly. An optional mulching kit and optional high height of cut blade are also available.

Smart Power® Traction

Smart Power® Traction allows even an inexperienced operator to achieve a consistent cut, even on hills and thick patches. By automatically adjusting ground speed when encountering heavy cutting conditions, optimum blade speed is maintained.

SmartCool™ Auto-Reversing Cooling Fan

Engineered with our exclusive SmartCool™ technology, so when things heat up under the hood, the system briefly reverses the cooling fan to blast chaff and debris from the air intake screens. The result, is non-stop improved productivity.

Mini InfoCentre™

With this feature you get helpful maintenance reminders and instant notification of potential problems. During normal operation, the InfoCenter displays clear and simple operating information at a glance, while constantly monitoring the internal health of the machine. Audible and visual alarms notify the operator of a potential problem. In the field or at the shop, technicians can quickly identify the source of the issue. Allows operator to adjust sensitivity of electronically controlled foot pedal when moving. This allows the supervisor to set a maximum mowing speed for greater control of operator usage and quality.

4-Wheel Drive

The Groundsmaster® 4500-D features a unique, parallel hydraulic traction system that assures full-time, bi-directional 4-wheel drive. Parallel hydraulic flow between front and rear wheels means that you will have 4-wheel drive assistance in turns, enabling easier trimming around objects without tire scuffing and dependable traction on hills and wet terrain.

Attractive Striping

Rear rollers provide an attractive striping effect while you mow, greatly enhancing the finished look of your turf.

Durable Design

Proven rugged frame, drivetrain, and components ensure durability and long life. Heavy-duty welded steel decks and frames provide extra durability and long life.

Easy Service

Decks can be raised or removed quickly, and enclosures can be pulled off without tools so technicians can get at everything effortlessly.

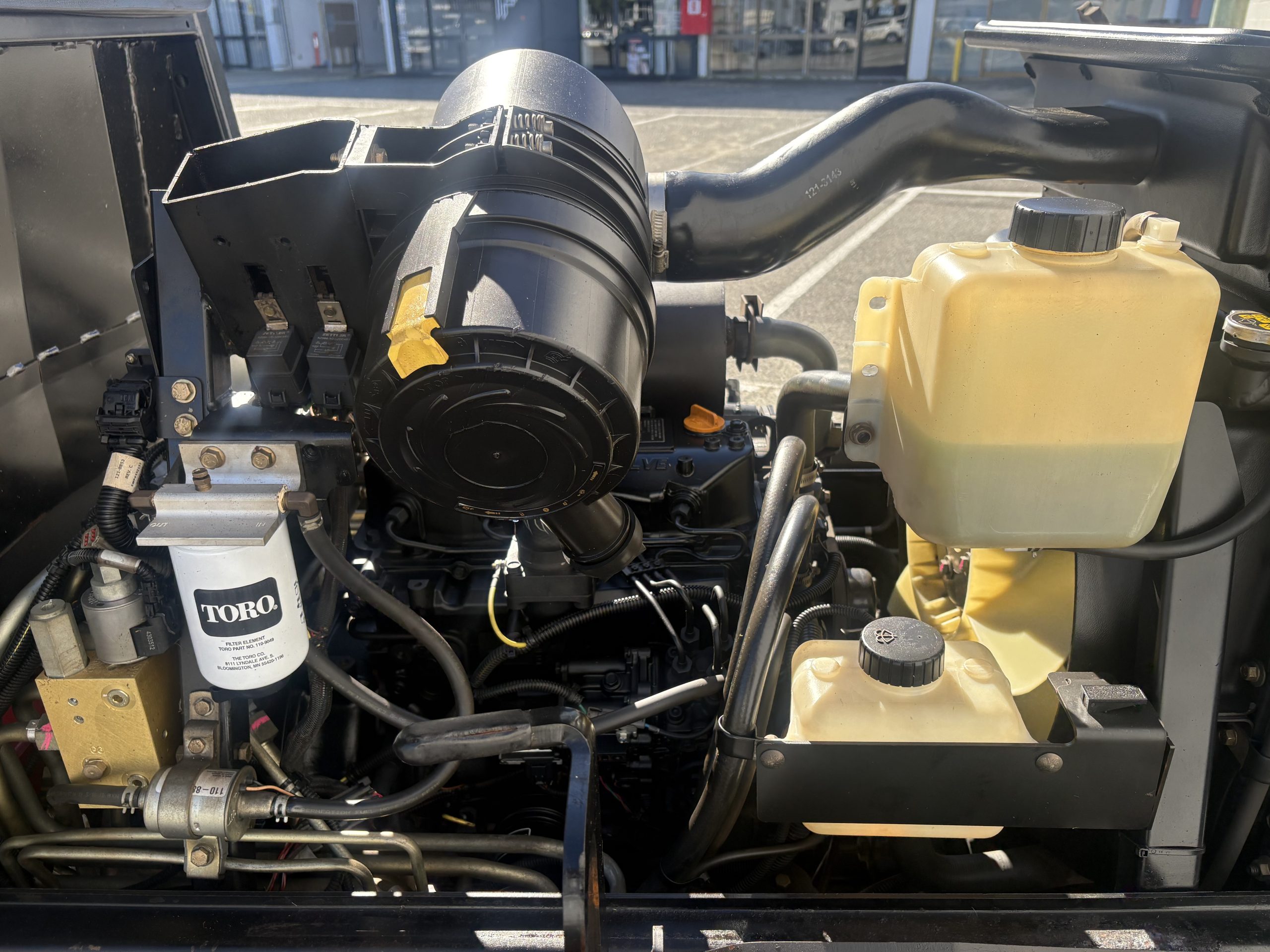

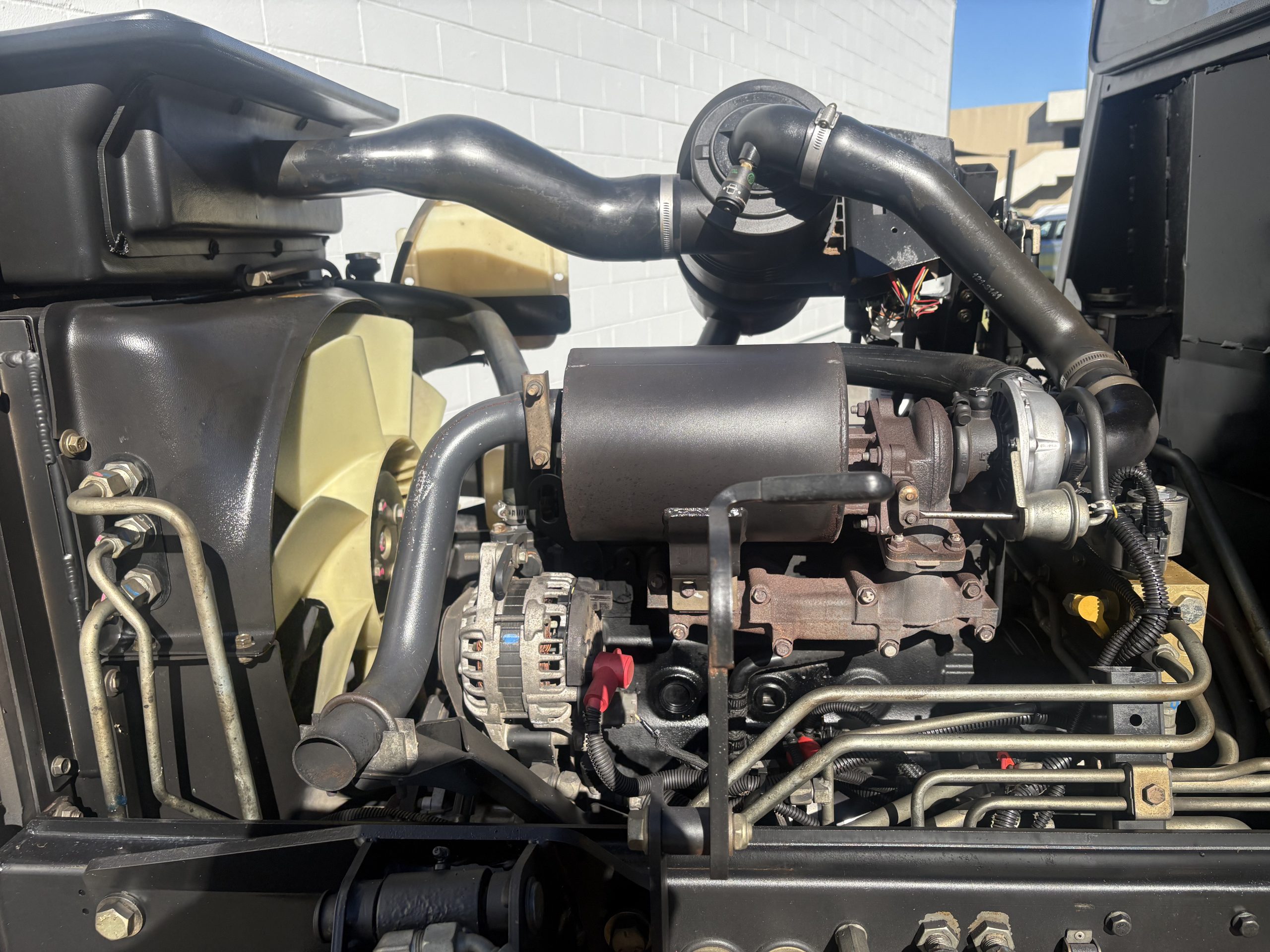

Engine Yanmar® 4TNV84T diesel
Engine Power (kW) 48 hp (36 kW)
Fuel Type Diesel
Fuel Capacity 83.3 litres
Cooling System 31.2 litres capacity with 10 micron remote spin-on filter, 9 row single pass cooler with tilt out for cleaning. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities. Rear-mount, single pass, 7-row radiator with 6.3 fins per inch, 13 U.S. qt. (12.3 L) capacity
Air Filter Dry, replaceable primary and safety elements
Cutting Width 381 cm (150″)
Mowing Rate 4.3 hectares/hr
Deck Design 10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5″ (3.8 cm) square x 0.25″ (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16″ (0.48 cm) high-strength steel and 10-gauge exterior channels
Blades 27″ (68.6 cm) long, 2.5″ (6.4 cm) wide, 0.25″ (0.64 cm) thick combination blades
Spindle Housing Ductile cast iron spindle housing
Spindle Bearings Dual greaseable tapered roller bearings. 3.2 cm diameter solid cold finished steel spindle shaft
Height of Cut 0.75″ – 4″ (1.9 cm – 10.2 cm) in 0.25″ (0.6 cm) increments. 3-position 0.030″ (0.08 cm) incremental calibration
Roll-Over Protection (ROPS) 2-post ROPS and seat belt standard
Armrests Standard
Ground Speed – Forward 0-21 km/h
Mowing Speed 0-11.3 km/h
Traction Drive (System) Parallel hydrostatic, closed loop system with full-time 4WD forward/reverse in low (mow) and high (transport) range. Variable displacement piston pump with electronic servo control powers dual speed piston motor drive into double reduction planetary in front, and mechanical axle in rear. Smart Power® feature controls traction speed to maintain optimal cutting blade speed
Controls Ignition switch, low and auto mow/transport range selection switch, PTO switch, light switch. Foot-operated traction pedal, individual foot-operated steering brake control of left and right wheels with parking brake lock. One 2-position lift switch
Steering Controls Power steering with dedicated power source, tilt steering
Tyres Front: 29″ x 14″ – 15”, 6-ply Rear: 20″ x 10″ – 10″, 4-ply

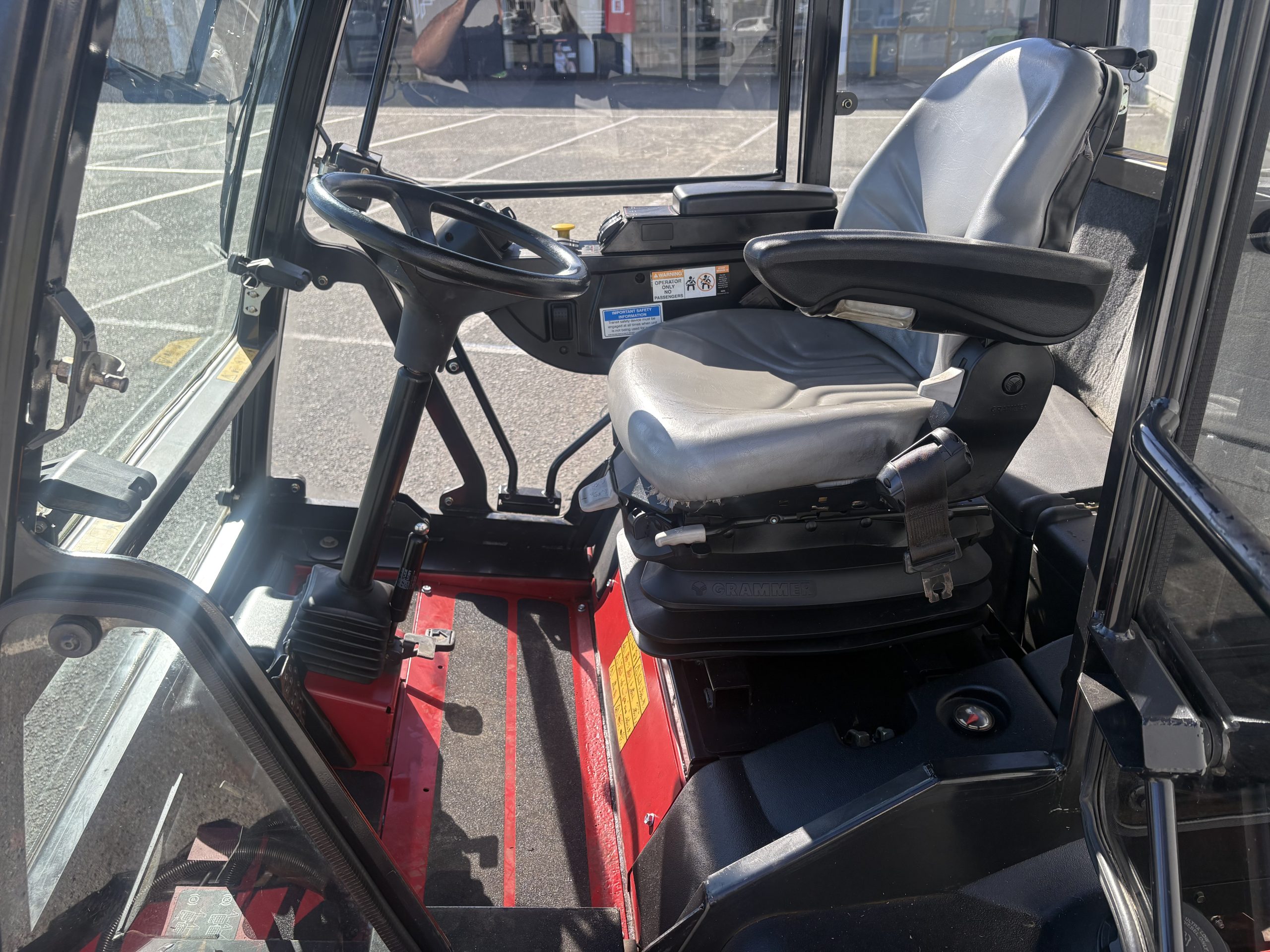

Seat Premium seat with adjustments for operator weight via air ride suspension, seat fore/aft position, seat back angle, arm rest height and retractable seat belt
Ground Clearance 15.3 cm
Assembled Height Metric 217 cm
Weight 2,188 kg with full fluids

*Please note used machines may vary from the specifications of a brand new machine. Descriptions are a guide only.
