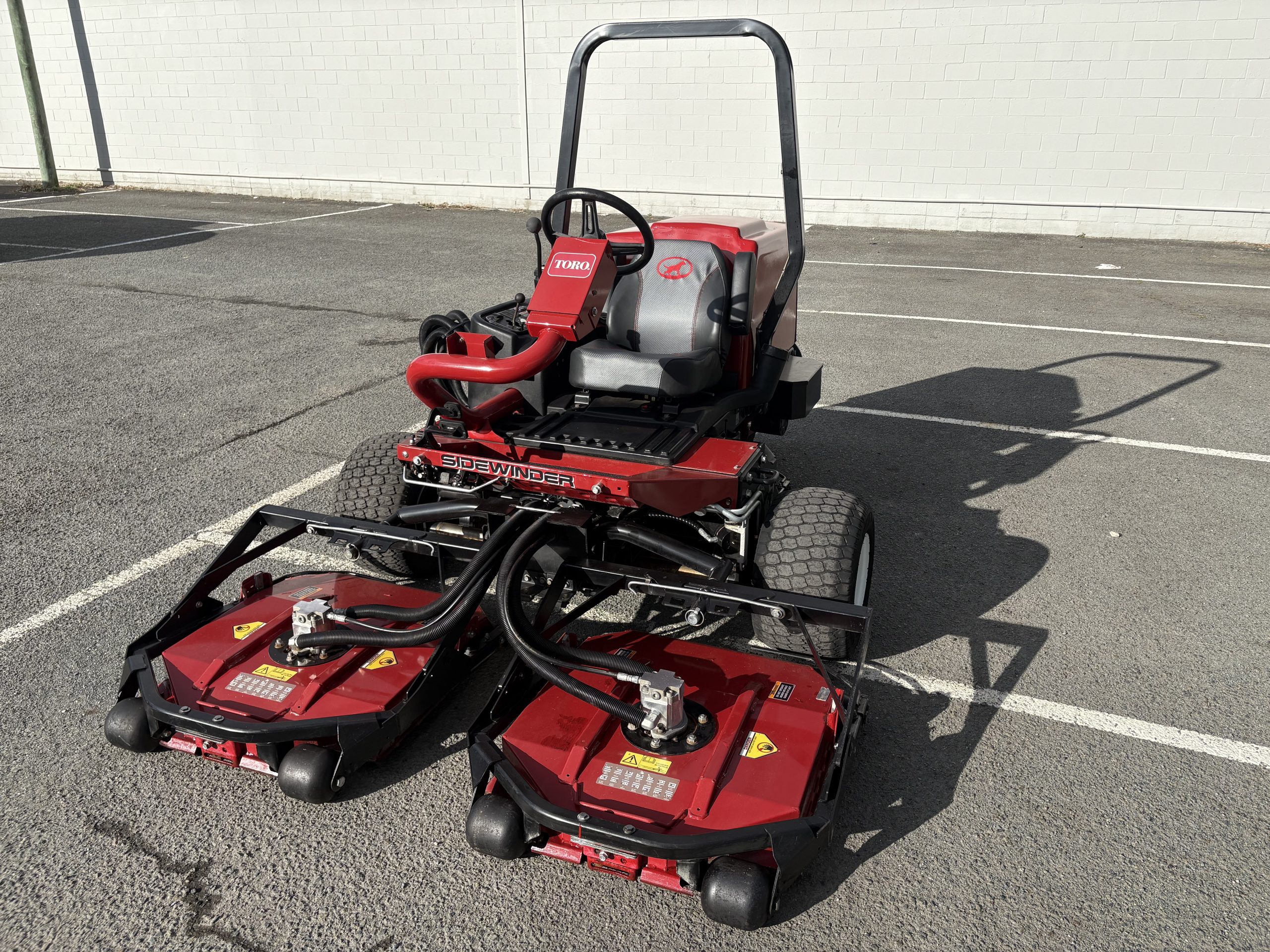

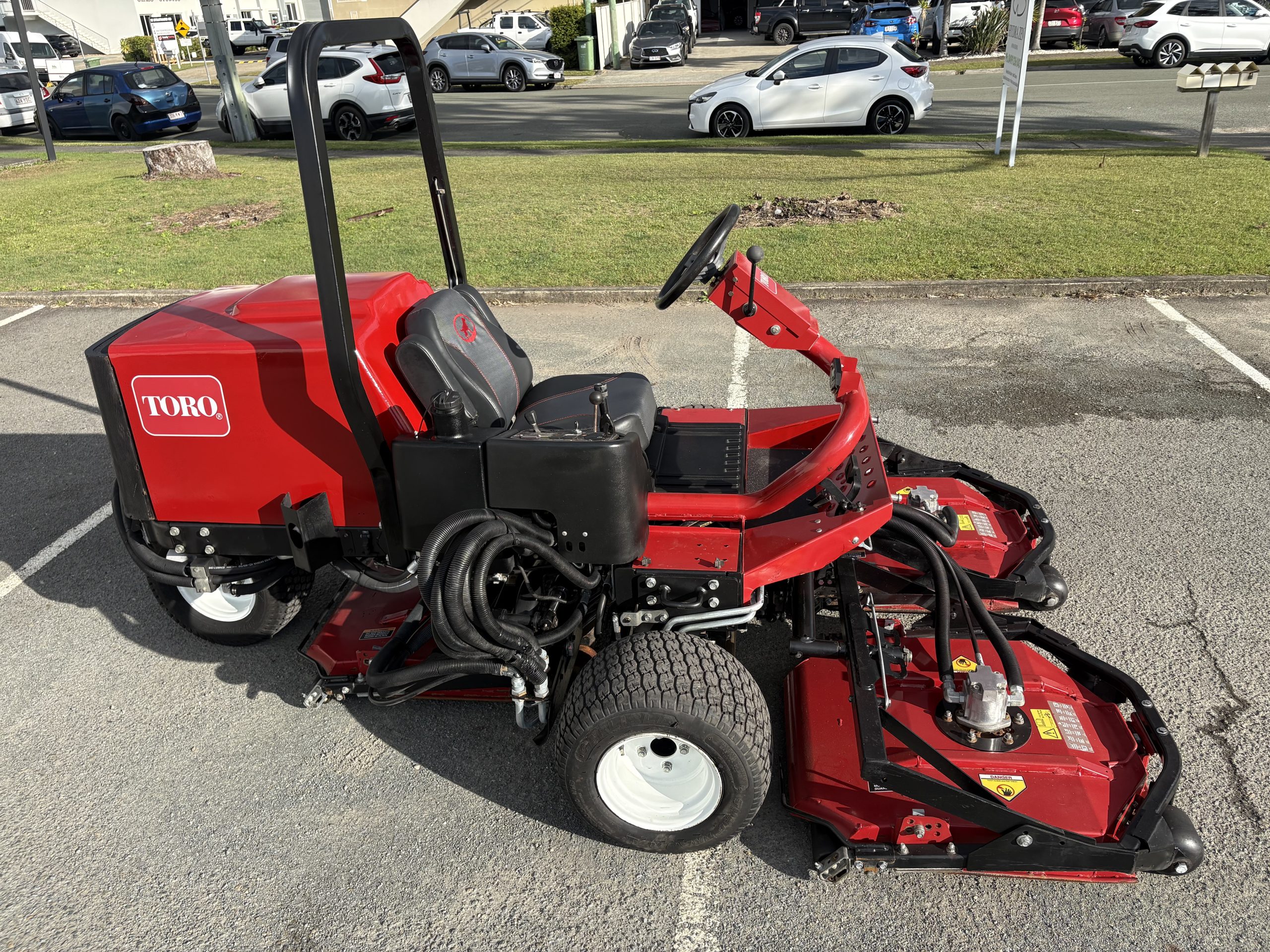

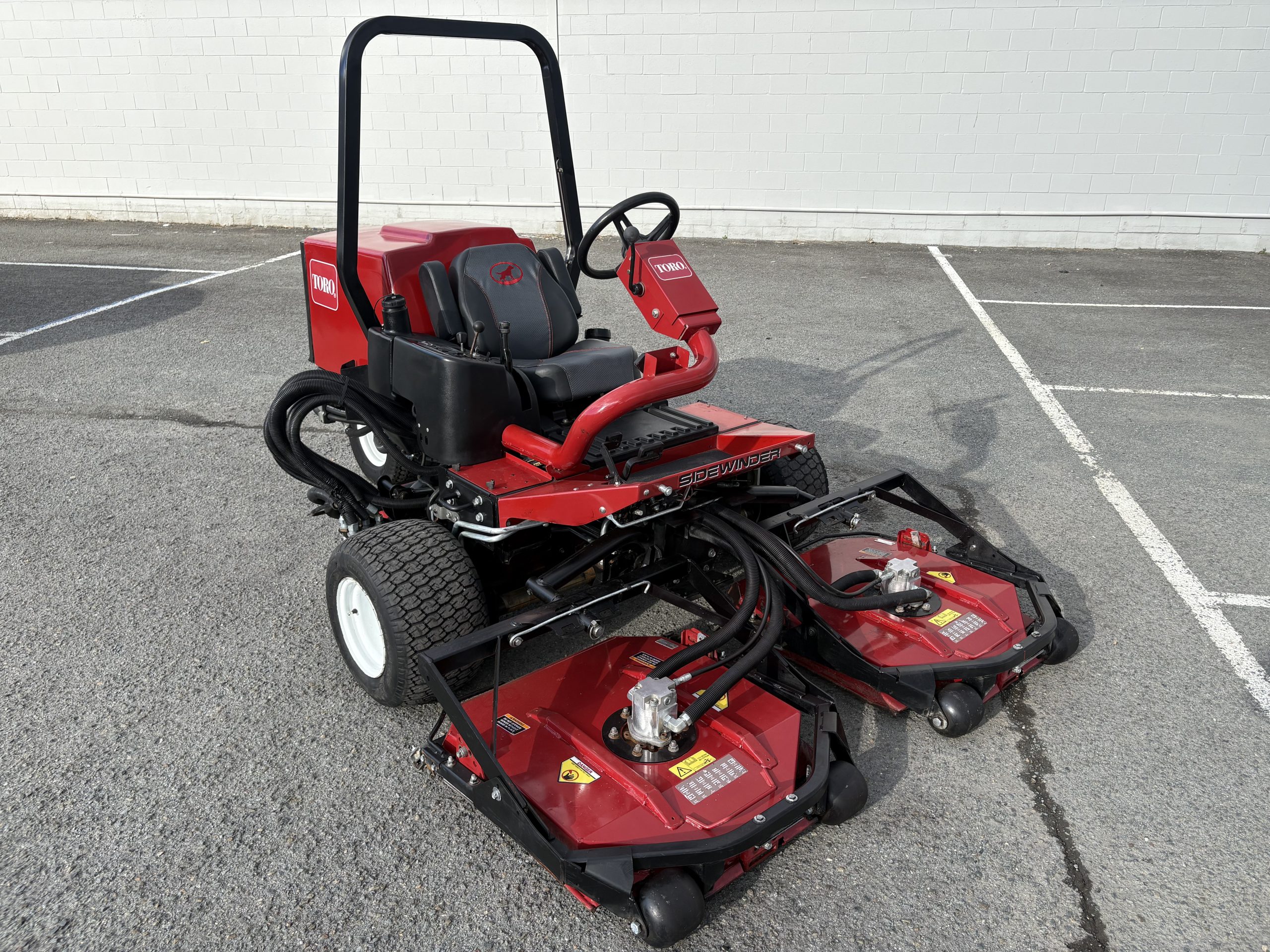

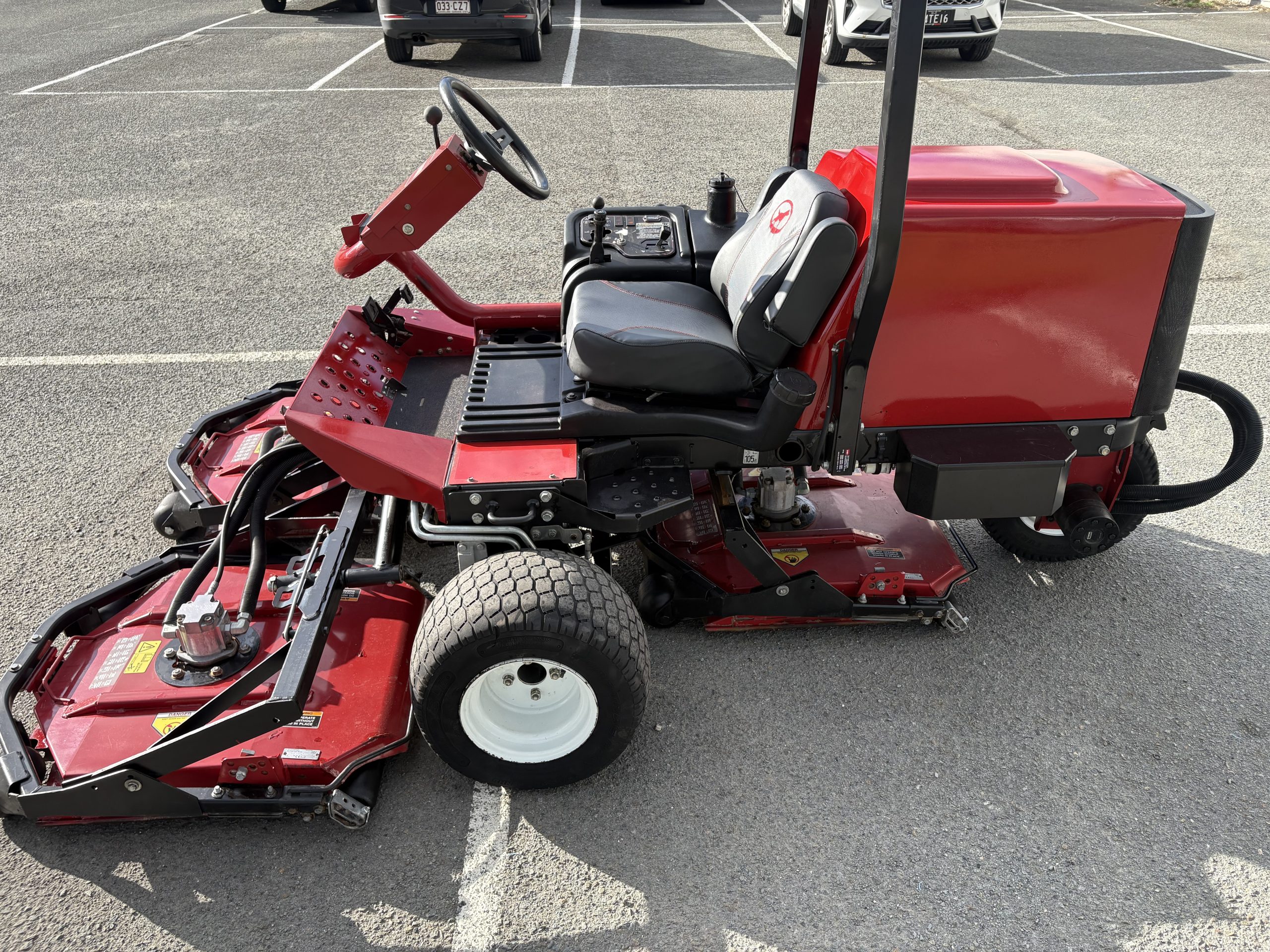

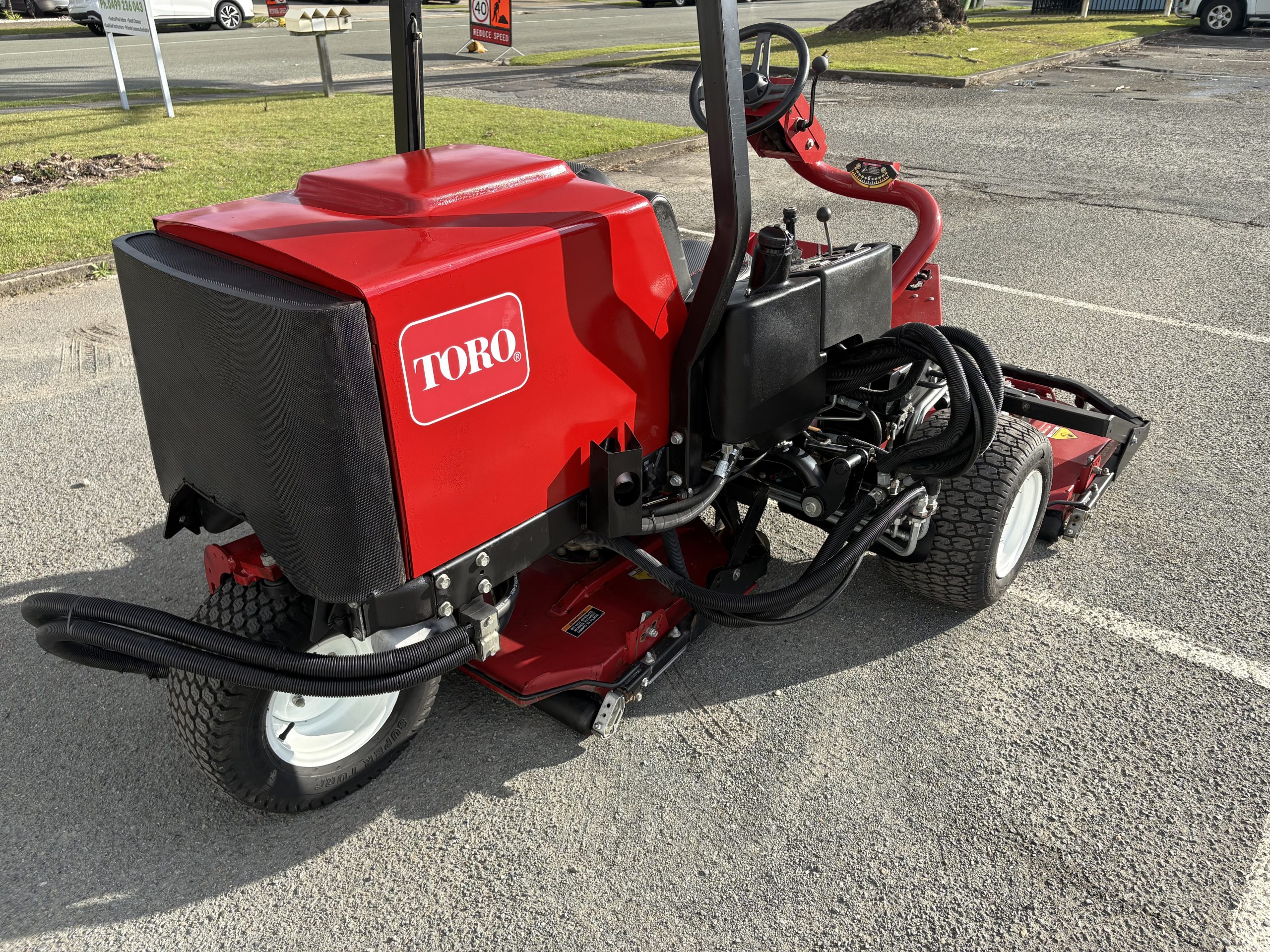

Used Toro 3500-D Sidewinder®

$24,990.00

*Excluding GST & prices starting from. All prices in AUD.*

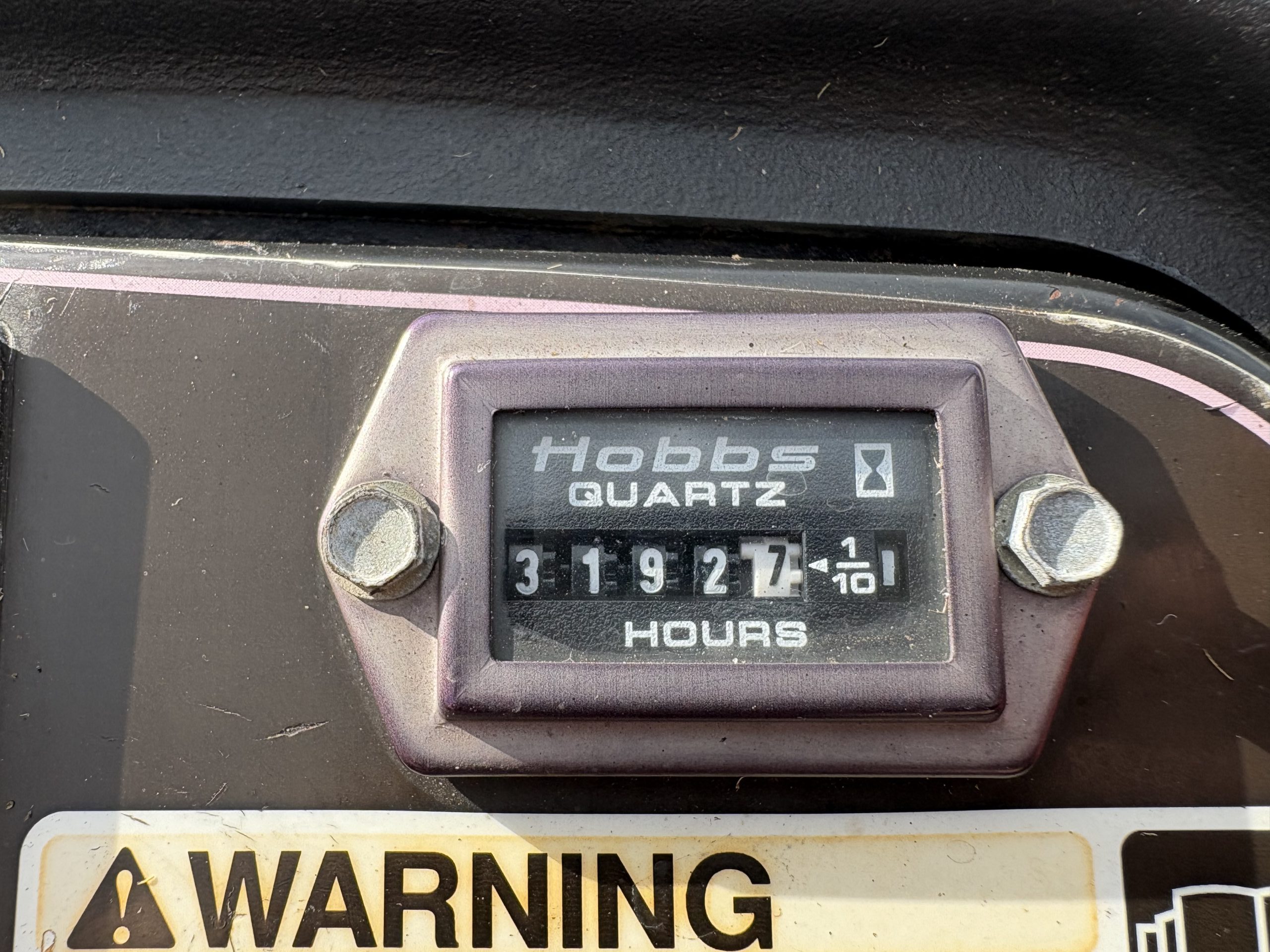

⌛3192





✅ Fully Serviced

✅ Professionally Cleaned

✅ Warranty Available

✅ Delivery Australia Wide

📞 Chris Paterson – PH – 0418755697

📞 Danny Foott – PH – 0487962042

📞 Freecall – 1800 704 574

✉️ Email – chris@golfmowersaustralia.com.au

✉️ Email – sales@golfmowersaustralia.com.au

⛳ Call now for over the phone deals!

Category:
Description

  • The unique Toro Series/Parallel™ traction drive system provides steady traction in all conditions, even in wet grass and over undulating terrain. Its full-time, 3-wheel drive system maintains power to two of the three wheels at all times, minimizing tire spinouts and scuffing.
  • Sidewinder cutting units shift left and right a total of 24 inches (61 cm). This allows the tire tracks to be shifted within the mowing path to reduce wear on the turf.
  • The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut, while an acceleration baffle speeds clipping circulation and assures maximum power.
  • The ground-following design of each Contour™ Plus free-floating deck permits mowing the most challenging berms without scalping. Two front rollers and a rear roller allow the deck to smoothly pass over turf.

The Groundsmaster® 3500 Series is a revolutionary triplex rotary mower designed for superior performance trimming. The free-floating Contour™ Plus cutting decks allow mowing of undulating terrain without scalping. The powerful engine and exclusive traction drive system, gets the mowing job done quickly.

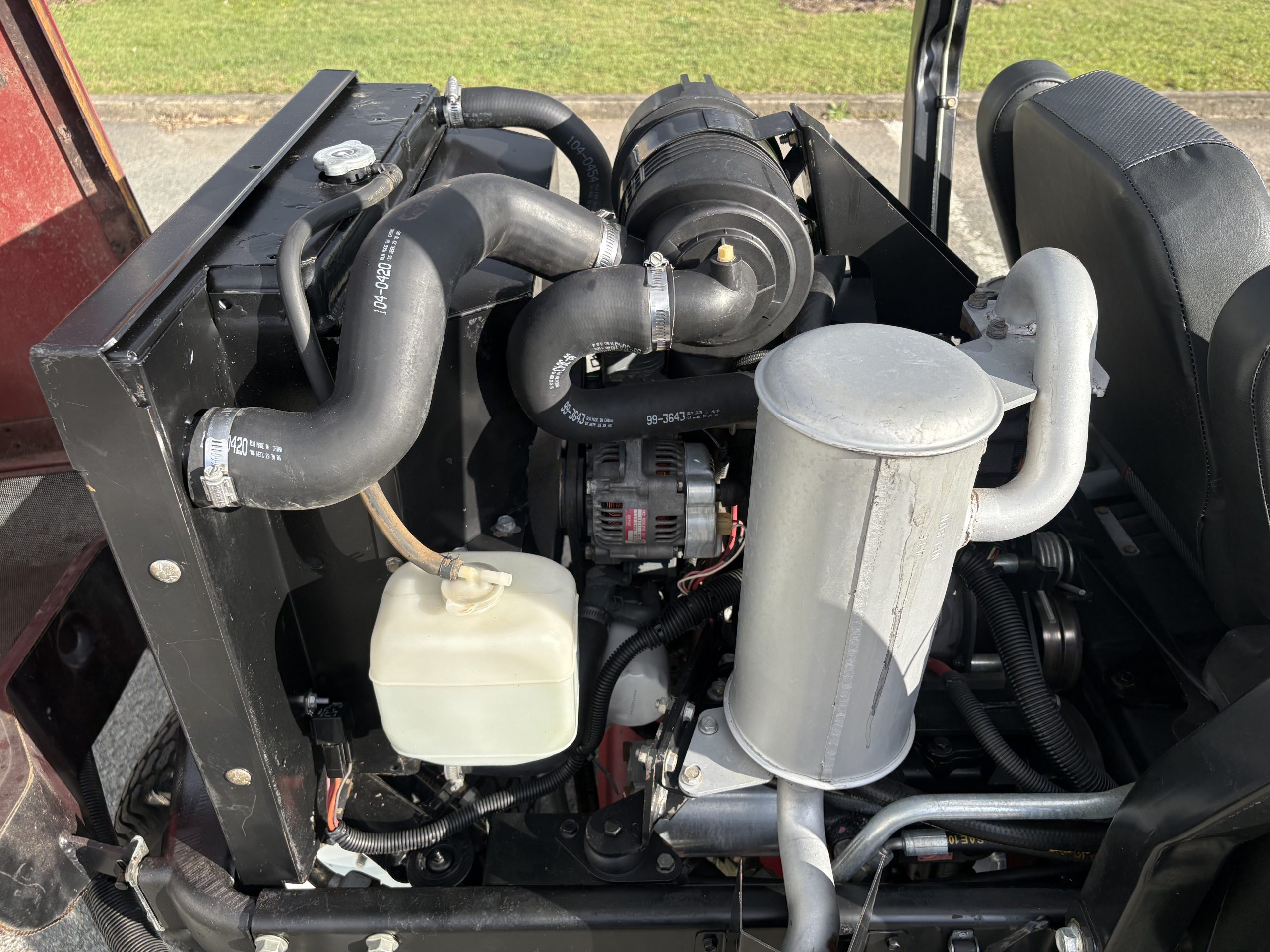

Engine Kubota® 3-cylinder, liquid-cooled diesel
Engine Power (kW) 25 hp (18.5 kW)
Fuel Type Diesel
Fuel Capacity 41.6 litres
Cooling System Rear-mounted, cross flow 4-row radiator
Air Filter Remote-mounted 5″ Donaldson® air cleaner
Cutting Width 173 cm (68″) standard and 183 cm (72″) optional.
Mowing Rate 1.7 hectares/hr
Deck Design 10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5″ (3.8 cm) square x 0.25″ (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16″ (0.48 cm) high-strength steel and 10-gauge exterior channels
Blades Combination Blades: 27″ (68.6 cm) long, 2.5″ (6.4 cm) wide, 0.25″ (0.64 cm) thick
Spindle Housing Ductile cast iron spindle housing
Spindle Bearings Dual greaseable tapered roller bearings. 3.2 cm diameter solid cold finished steel spindle shaft
Height of Cut 0.75″ – 4″ (1.9 cm – 10.2 cm) in 0.25″ (0.6 cm) increments. 3-position 0.030″ (0.08 cm) incremental calibration
Armrests Standard
Ground Speed – Forward 0-14 km/h
Mowing Speed 0-10 km/h
Traction Drive (System) 3-wheel drive hydrostatic series/parallel closed-loop transmission
Controls Forward and reverse traction control pedals; mow/transport foot lever; hand activated parking brake; hand operated ignition key switch; tilt steering wheel lock; PTO switch; throttle; joystick control for deck raise and lower; cutting deck transport lock
Steering Controls Hydraulic power steering, tilt wheel
Tyres 20″ X 10″-10″, 4-ply rating, Toro Turf Tread Rear tyres. 20″ X 12″-10″, 4-ply rating, Toro Turf Tread Front tyres
Seat Two-piece premium commercial two-tone grey vinyl with two armrests, fore/aft adjustment
Ground Clearance 15.3 cm
Assembled Width Metric 184 cm
Assembled Height Metric 193 cm
Weight 957 kg

*Please note used machines may vary from the specifications of a brand new machine. Descriptions are a guide only.
